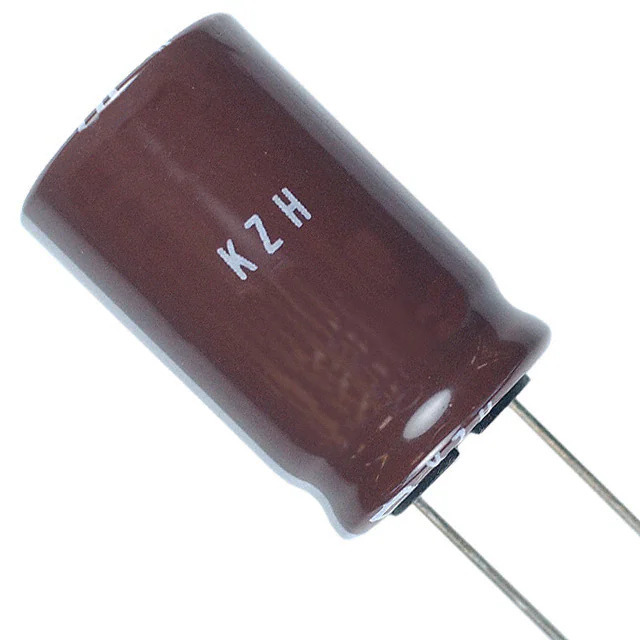

EKZH250ELL102MJ25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZH250ELL102MJ25S

Part No EKZH250ELL102MJ25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 25V RADIAL / 1000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZH
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.35 A @ 120 Hz
Ripple Current @ High Frequency 2.25 A @ 100 kHz
Impedance 18 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357991-EKZH250ELL102MJ25S
Ultra Librarian 3D Model Ultra Librarian EKZH250ELL102MJ25S CAD Model

Description

The 1357991-EKZH250ELL102MJ25S is an aluminum electrolytic capacitor from the KZH series. It is designed for use in general-purpose electronic circuits that require reliable and high-capacitance components.

  • Series: KZH
  • Capacitance: 1000 µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 105°C
  • Lifetime @ Temp.: 6000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Product Status: Active
