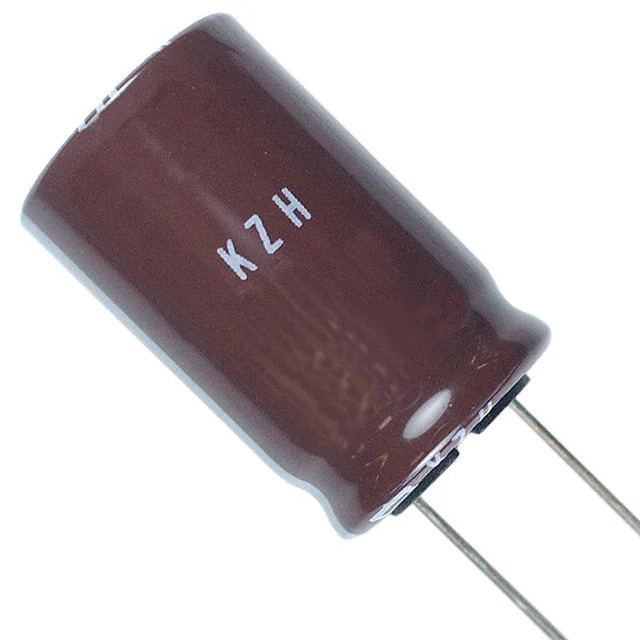

EKZH250ETD821MJ20S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZH250ETD821MJ20S

Part No EKZH250ETD821MJ20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 820UF 20% 25V RADIAL / 820 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZH
Package Tape & Box (TB)
Product Status Active
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.176 A @ 120 Hz
Ripple Current @ High Frequency 1.96 A @ 100 kHz
Impedance 20 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358077-EKZH250ETD821MJ20S
Ultra Librarian 3D Model Ultra Librarian EKZH250ETD821MJ20S CAD Model

Description

The KZH series from United Chemi-Con is a radial, can-type aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 820 μF
  • Voltage Rating: 25 V
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 105°C
  • Ripple Current (Low Freq): 1.176 A @ 120 Hz
  • Ripple Current (High Freq): 1.96 A @ 100 kHz
  • Lifetime: 6000 hours @ 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.197" (5.00mm)
  • REACH: Compliant
  • ECCN: EAR99
  • Application: Automotive and General Purpose
