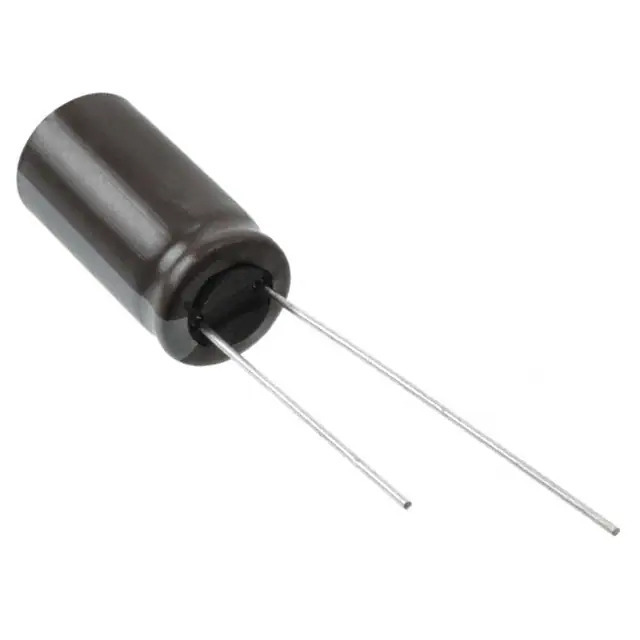

ELXV350ELL561MK20S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXV350ELL561MK20S

Part No ELXV350ELL561MK20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 35V RADIAL / 560 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXV
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 680 mA @ 120 Hz
Ripple Current @ High Frequency 1.36 A @ 100 kHz
Impedance 46 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358186-ELXV350ELL561MK20S
Ultra Librarian 3D Model Ultra Librarian ELXV350ELL561MK20S CAD Model

Description

The LXV series from United Chemi-Con is a high-quality aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 560 µF
  • Voltage - Rated: 35 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 680 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.36 A @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Applications: Automotive
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Series: LXV
  • Ratings: AEC-Q200
  • Status: Active
