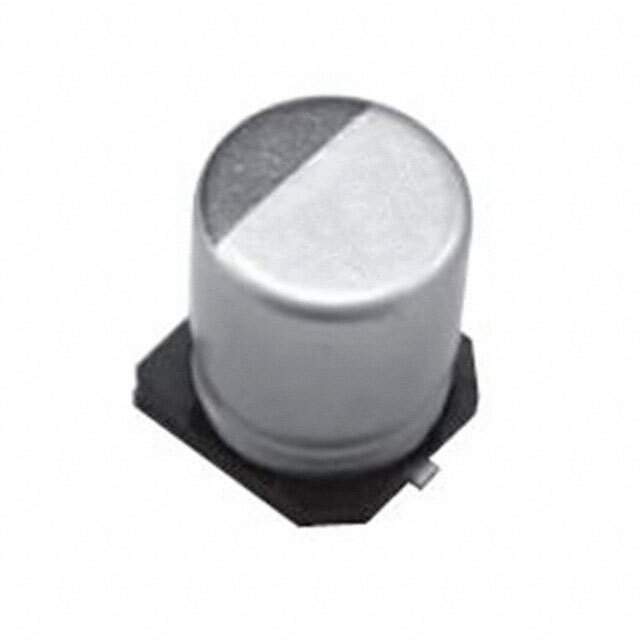

EMHL350ARA331MJA0G Real Image
Same model may have multiple batches, images only for reference.

EMHL350ARA331MJA0G

Part No EMHL350ARA331MJA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 35V SMD / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 200mOhm @ 100kHz 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series AIchip™- MHL
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 200mOhm @ 100kHz
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 409.2 mA @ 120 Hz
Ripple Current @ High Frequency 440 mA @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337180-EMHL350ARA331MJA0G
Ultra Librarian 3D Model Ultra Librarian EMHL350ARA331MJA0G CAD Model

Description

The United Chemi-Con capacitor is an aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 35 V.

  • Capacitance: 330 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • ESR: 200mOhm @ 100kHz
  • Ripple Current: 409.2 mA @ 120 Hz and 440 mA @ 100 kHz
  • Win Source Part Number: 1337180-EMHL350ARA331MJA0G
  • Series: AIchip™- MHL
  • Application: Automotive
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD
