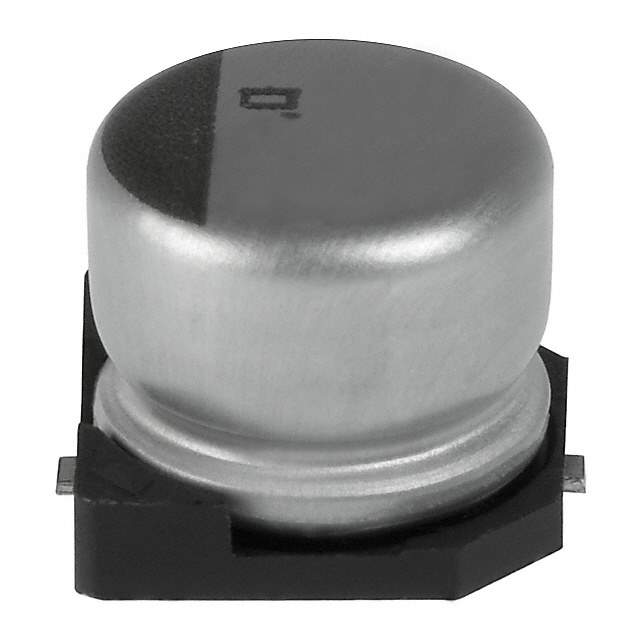

Same model may have multiple batches, images only for reference.

EMVY350ADA220MF55G

Get a Quote

Part No	EMVY350ADA220MF55G
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 35V SMD / 22 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	Alchip™- MVY
Package	Tape & Reel
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	56 mA @ 120 Hz
Ripple Current @ High Frequency	140 mA @ 100 kHz
Impedance	1 Ohms
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.205" (5.20mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	565-2473-6,565-2473-1,565-2473-2
Standard Package	1,000
Win Source Part Number	1164447-EMVY350ADA220MF55G
Ultra Librarian 3D Model	Ultra Librarian EMVY350ADA220MF55G CAD Model

Alternative Products

Description

The United Chemi-Con Alchip™- MVY series aluminum electrolytic capacitor is a reliable and high-performance component suitable for general-purpose applications.

Capacitance: 22 μF
Voltage Rating: 35 V
Tolerance: ±20%
Impedance: 1 Ohms
Polarization: Polar
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Ripple Current: 56 mA @ 120 Hz and 140 mA @ 100 kHz
Height: 0.205" (5.20mm)
Diameter: 0.248" (6.30mm)
Lifetime: 1000 Hrs @ 105°C
Packaging: Tape & Reel
RoHS Compliant: Yes
ECCN: EAR99
