Same model may have multiple batches, images only for reference.

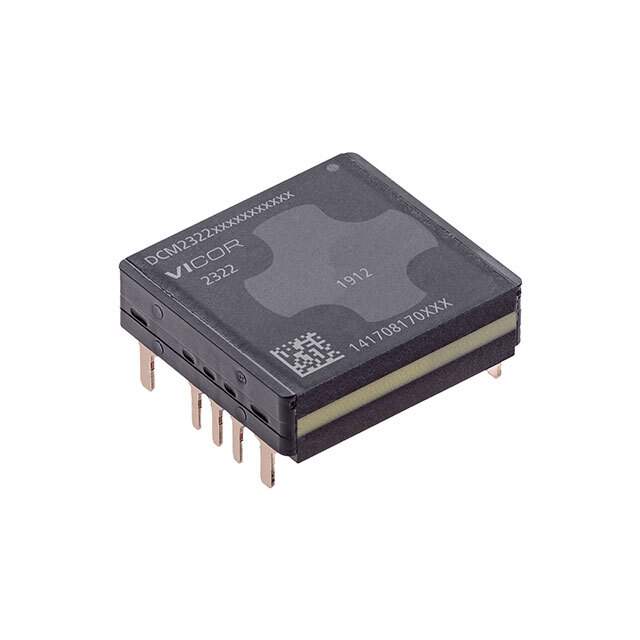

DCM2322T50T1760M60 Real Image
Same model may have multiple batches, images only for reference.

DCM2322T50T1760M60

Part No DCM2322T50T1760M60
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 60W / Isolated Module DC DC Converter 1 Output 15V 4A 9V - 50V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® DCM®
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 50V
Voltage - Output 1 15V
Current - Output (Max) 4A
Power (Watts) 60 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -55°C ~ 125°C
Efficiency 93%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Approval Agency CE, cTUVus, cURus
Base Product Number DCM2322
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337418-DCM2322T50T1760M60
Ultra Librarian 3D Model Ultra Librarian DCM2322T50T1760M60 CAD Model

Description

This electronic component is a power supply board mount DC DC converter manufactured by Vicor Corporation.

  • Series: VI Chip DCM
  • Type: Isolated Module
  • Output: Adjustable
  • Package: Tray
  • Size: 0.98 inches L x 0.90 inches W x 0.28 inches H
  • Application: ITE (Commercial)
  • Standard Package: 25
  • Power Output: 60 watts
  • Voltage Isolation: 3 kV
  • Outputs: 1
  • Max Current Output: 4A
  • Input Voltage: 9V to 50V
  • Output Voltage: 15V
  • Efficiency: 93 percent
  • Mounting Type: Through-Hole
  • Package/Case: 9-DIP Module
  • Operating Temperature: -55 degrees Celsius to 125 degrees Celsius
  • Approvals: CE, cTUVus, cURus
  • California Prop 65: Compliant
  • REACH Status: Unaffected
  • HTSUS Code: 8504.40.9580
