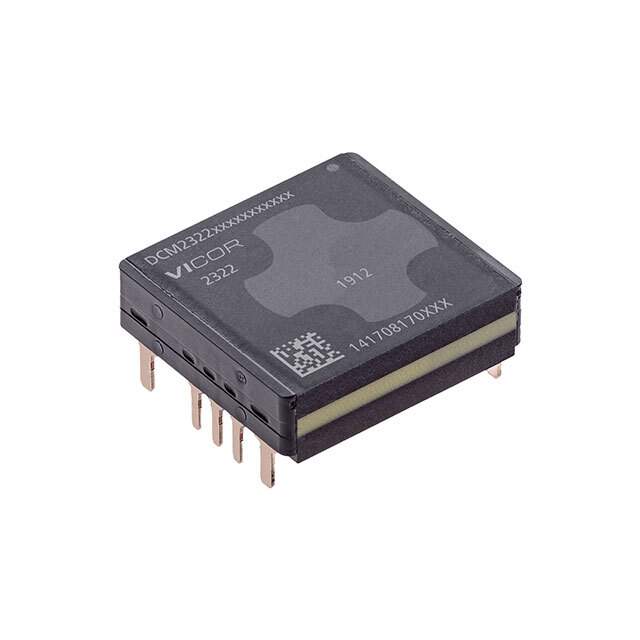

DCM2322T72S13A0M60 Real Image
Same model may have multiple batches, images only for reference.

DCM2322T72S13A0M60

Part No DCM2322T72S13A0M60
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 100W / Isolated Module DC DC Converter 1 Output 12V 8.33A 14V - 72V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® DCM®
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 14V
Voltage - Input (Max) 72V
Voltage - Output 1 12V
Current - Output (Max) 8.33A
Power (Watts) 100 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -55°C ~ 125°C
Efficiency 93%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Approval Agency CE, cTUVus, cURus
Base Product Number DCM2322
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1338096-DCM2322T72S13A0M60
Ultra Librarian 3D Model Ultra Librarian DCM2322T72S13A0M60 CAD Model

Description

The Vicor Corporation DCM2322T72S13A0M60 is a VI Chip® DCM® isolated module that is perfect for use in power supplies.

  • Feature: Adjustable Output
  • Package: Tray
  • Size Dimension: 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
  • Application: ITE (Commercial)
  • Standard Package: 25
  • Power Rating: 100 W
  • Voltage Isolation: 3 kV
  • Outputs: 1
  • Output Current (Max): 8.33A
  • Input Voltage: 14V to 72V
  • Output Voltage: 12V
  • Efficiency: 93%
  • Mounting Type: Through-Hole
  • Package/Case: 9-DIP Module
  • Approvals: CE, cTUVus, cURus
  • California Prop 65: Compliant
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
