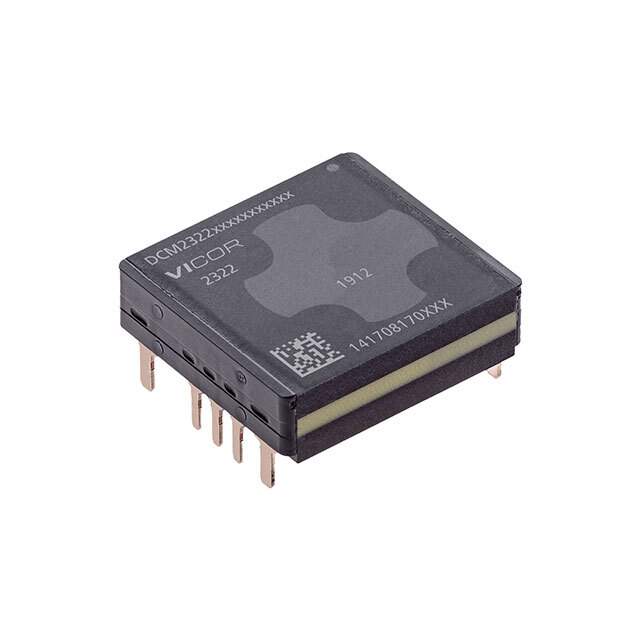

Same model may have multiple batches, images only for reference.

DCM2322T72S13A0T60

Name: DCM2322T72S13A0T60
Brand: Vicor Corporation
SKU: 1340405
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DCM2322T72S13A0T60
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 100W / Isolated Module DC DC Converter 1 Output 12V 8.33A 14V - 72V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Vicor Corporation
Series	VI Chip® DCM®
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	14V
Voltage - Input (Max)	72V
Voltage - Output 1	12V
Current - Output (Max)	8.33A
Power (Watts)	100 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Adjustable Output
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	93%
Mounting Type	Through Hole
Package / Case	9-DIP Module
Size / Dimension	0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Approval Agency	CE, cTUVus, cURus
Base Product Number	DCM2322
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1340405-DCM2322T72S13A0T60
Ultra Librarian 3D Model	Ultra Librarian DCM2322T72S13A0T60 CAD Model

Alternative Products

Description

The Vicor Corporation VI Chip® DCM® series is an isolated module type DC-DC converter.

Series: VI Chip® DCM®
Type: Isolated Module, DC-DC Converter
Output Feature: Adjustable Output
Package: Tray
Size/Dimension: 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Power: 100 W
Voltage Isolation: 3 kV
Number of Outputs: 1
Current Output (Max): 8.33A
Voltage Input (Min): 14V
Voltage Input (Max): 72V
Voltage Output 1: 12V
Efficiency: 93%
Mounting Type: Through Hole
Package/Case: 9-DIP Module
Operating Temperature: -40°C ~ 125°C
Win Source Part Number: 1340405-DCM2322T72S13A0T60
