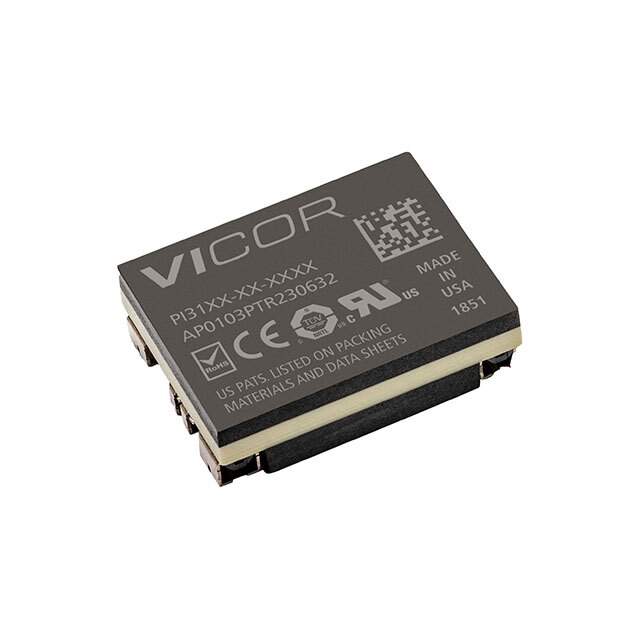

Same model may have multiple batches, images only for reference.

PI3105-00-HVIZ

Name: PI3105-00-HVIZ
Brand: Vicor Corporation
SKU: 1339808
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PI3105-00-HVIZ
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 60W / Isolated Module DC DC Converter 1 Output 12V 5A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Vicor Corporation
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	5A
Power (Watts)	60 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	88.5%
Mounting Type	Surface Mount
Package / Case	8-SMD Module
Size / Dimension	0.87" L x 0.65" W x 0.27" H (22.0mm x 16.5mm x 6.7mm)
Base Product Number	PI3105
Standard Package	1
MSL Level	6 (Time on Label)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1339808-PI3105-00-HVIZ
Ultra Librarian 3D Model	Ultra Librarian PI3105-00-HVIZ CAD Model

Alternative Products

Description

The Vicor Corporation PI3105-00-HVIZ is a high-performance isolated module DC-DC converter designed for use in a range of commercial applications.

Power Output: 60W
Voltage Isolation: 2.25kV
Protection Features: Remote on/off, OCP, OTP, OVP, and UVLO
Package: 8-SMD module
Mounting Style: Surface mount
Temperature Range: -40°C to 125°C
