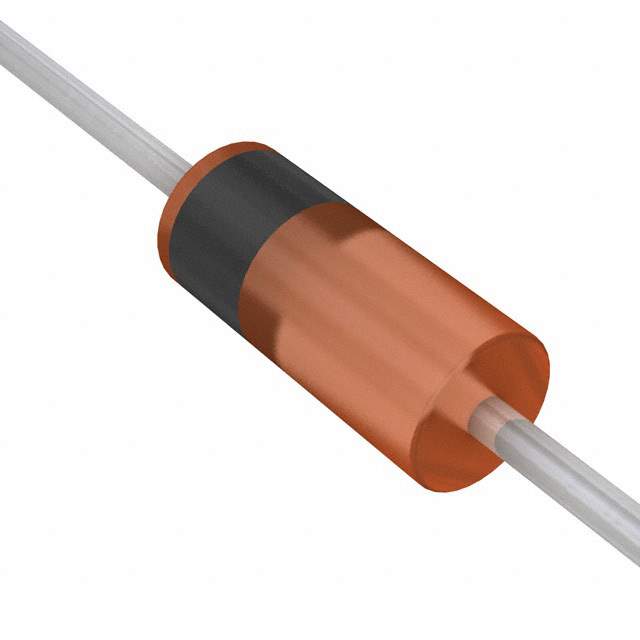

1N4154TAP Real Image
Same model may have multiple batches, images only for reference.

1N4154TAP

Part No 1N4154TAP
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 25V 150MA DO35
Datasheet
1N4154TAP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging AMMO PACKAGE
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 25V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1V @ 30mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 100nA @ 25V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting Through Hole
Case / Package DO-35
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1002107-1N4154TAP
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1N4154TAP CAD Model

Description

The Vishay 1N4154TAP is a standard diode with a maximum reverse voltage of 25V and an average rectified current of 150mA.

  • Maximum Reverse Voltage: 25V
  • Average Rectified Current: 150mA
  • Voltage Forward: 1V @ 30mA
  • Reverse Recovery Time: 4ns
  • Mounting: Through-Hole
  • Package: DO-35
  • Capacitance: 4pF @ 0V, 1MHz
