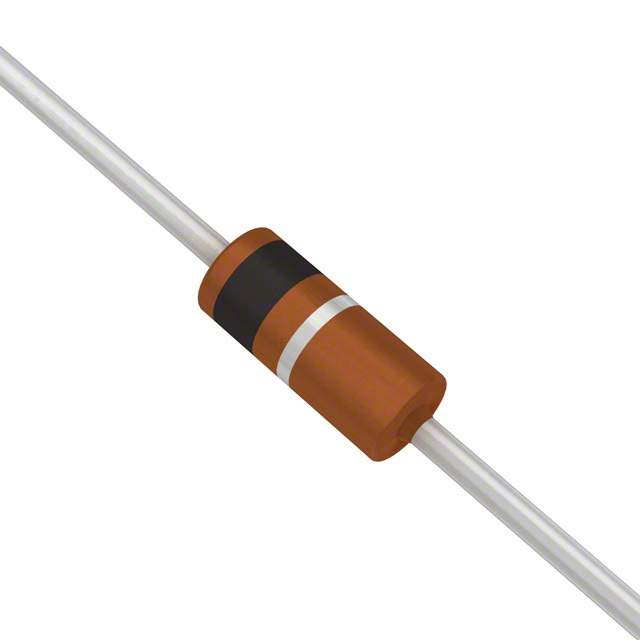

1N5258B-TR Real Image
Same model may have multiple batches, images only for reference.

1N5258B-TR

Part No 1N5258B-TR
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 36V 500MW DO35
Datasheet
1N5258B-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 36V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 70 Ohm
Current - Reverse Leakage @ Vr 100nA @ 27V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 200mA
Temperature Range - Operating 175°C
Mounting Through Hole
Case / Package DO-35
Win Source Part Number 1002233-1N5258B-TR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1N5258B-TR CAD Model

Description

The Vishay 1002233-1N5258B-TR is a through-hole-mounted zener diode with a voltage rating of 36V and a maximum power dissipation of 500mW.

  • Voltage Rating: 36V
  • Maximum Power Dissipation: 500mW
  • Tolerance: ±5%
  • Reverse Leakage Current: 100nA @ 27V
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Operating Temperature Range: 175°C
  • Package: DO-35
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Packaging: Reel - TR
