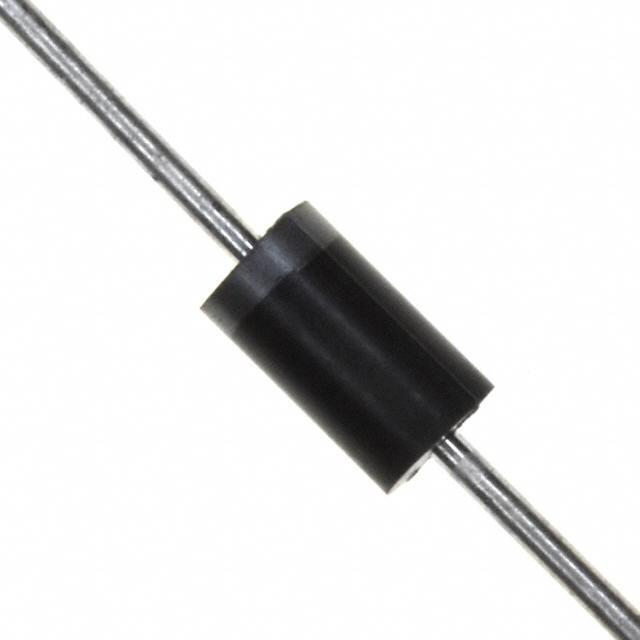

The 1N5408-E3/54 is a standard recovery diode manufactured by Vishay Semiconductor Diodes Division. It is a through-hole diode with a maximum voltage of 1000V and a current rating of 3A. The diode type is standard and it has a reverse leakage current of 5μA @ 1000V. The operating temperature range is from -50°C to 150°C. The packaging is cut tape (CT) and the mounting style is axial. The diode is widely used in various applications such as rectification, power supplies, and battery chargers. The capacitance @ Vr is 30pF @ 4V and 1MHz.

• Maximum Voltage: 1000V
• Current Rating: 3A
• Diode Type: Standard
• Reverse Leakage Current: 5μA @ 1000V
• Operating Temperature Range: -50°C to 150°C
• Packaging: Cut Tape (CT)
• Mounting Style: Axial
• Capacitance @ Vr: 30pF @ 4V and 1MHz
