Same model may have multiple batches, images only for reference.

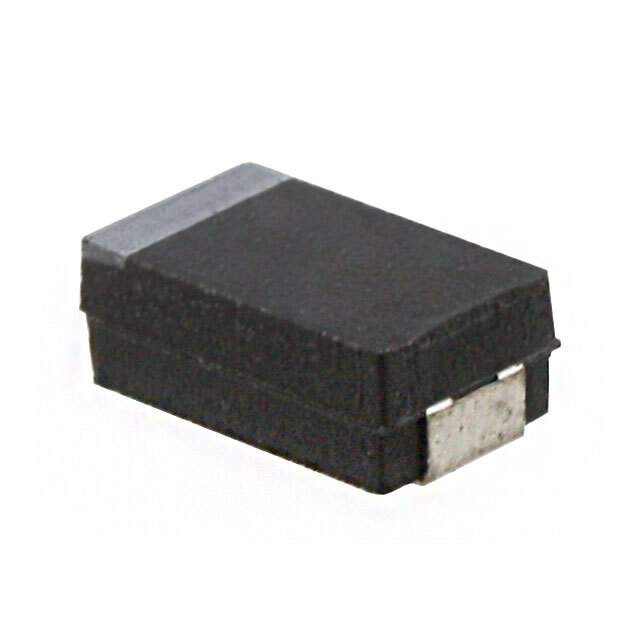

293D156X9025D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D156X9025D2TE3

Part No 293D156X9025D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 15UF 10% 25V 2917
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Packaging Reel
Capacitance 15μF
Tolerance ±10%
Voltage - Rated 25V
Type Molded
ESR (Equivalent Series Resistance) 800mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 736186-293D156X9025D2TE3
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 293D156X9025D2TE3 CAD Model

Description

The 736186-293D156X9025D2TE3 is a molded, general-purpose capacitor from Vishay Sprague.

  • Capacitance: 15μF
  • Tolerance: ±10%
  • Voltage Rating: 25V
  • ESR (Equivalent Series Resistance): 800mOhm
  • Package: 2917 (7343 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Height: 0.122" (3.10mm)
