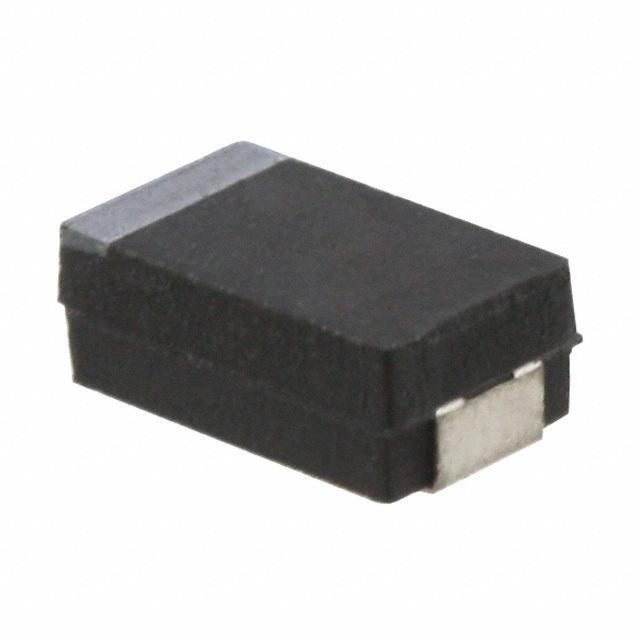

293D226X9025D2TE3

Part No 293D226X9025D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description Cap Tant Solid 22uF 25V D CASE 10% (7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.7 Ohm 125°C T/R / CAP TANT 22UF 25V 10% 2917
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±10%
Voltage Rating 25V
Type Molded
ESR 700 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 097203-293D226X9025D2TE3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 293D
Introduction Date February 23, 2005
ECCN EAR99
Country of Origin China, Israel
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 293D226X9025D2TE3 CAD Model

Description

293D226X9025D2TE3 from Vishay is a tantalum capacitor intended for designs that need stable capacitance in compact electronic assemblies. Parts in this category are commonly considered for power rail filtering, decoupling, timing, and general-purpose energy storage in industrial controls, telecom hardware, computing modules, and embedded systems. Engineers often select Vishay tantalum capacitors when board space, established technology, and predictable performance are important in mature circuit designs. For procurement teams, this part may also be relevant in sustaining builds, repair activity, or approved-vendor sourcing where Vishay is already specified. The current lifecycle status for 293D226X9025D2TE3 is information not available, so design and supply-chain teams should confirm factory status before committing it to new programs. RoHS compliance information is also not available from the input provided. Users should verify the latest environmental compliance declarations, datasheet details, and any regional material restrictions directly with Vishay or authorized distribution sources.
