Same model may have multiple batches, images only for reference.

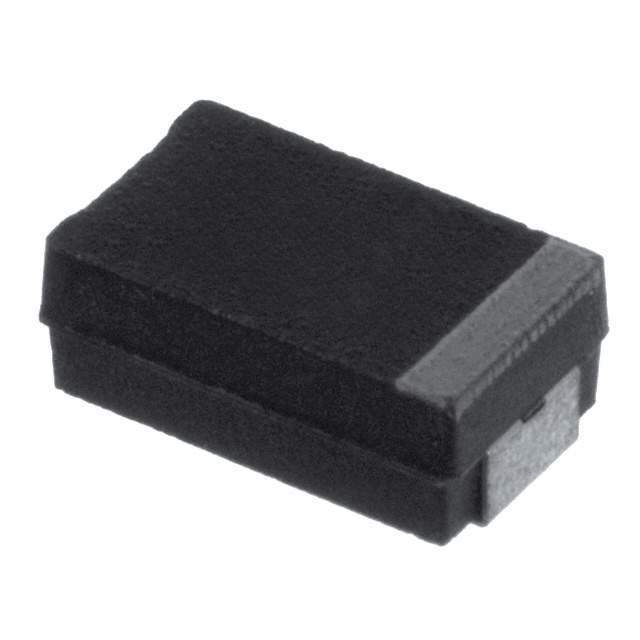

293D685X9020C2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D685X9020C2TE3

Part No 293D685X9020C2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 20V 10% 2312
Datasheet
293D685X9020C2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 6.8μF
Tolerance ±10%
Voltage Rating 20V
Type Molded
ESR 1.9 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max) 0.110" (2.79mm)
Manufacturer Size Code C
Features General Purpose
Win Source Part Number 1003739-293D685X9020C2TE3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 293D685X9020C2TE3 CAD Model

Description

The Vishay 1003739-293D685X9020C2TE3 capacitor is a molded type with a capacitance of 6.8μF and voltage rating of 20V.

  • Capacitance: 6.8μF
  • Voltage Rating: 20V
  • Tolerance: ±10%
  • ESR: 1.9 Ohm
  • Application: General-purpose
  • Mounting: SMD (SMT)
  • Lifetime @ temp.: -55°C to 125°C
  • Manufacturer Size Code: C
  • Dimension: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Supply and Demand Status: Balance
