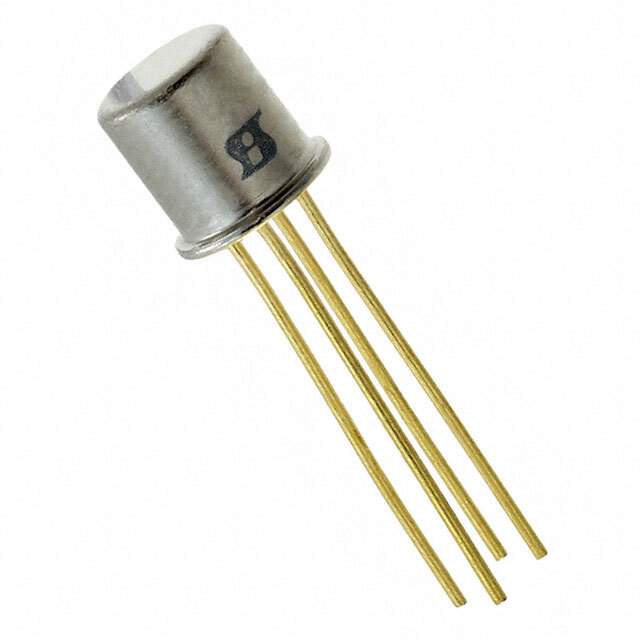

2N4119A Real Image
Same model may have multiple batches, images only for reference.

2N4119A

Part No 2N4119A
Manufacturer Vishay
Catalog JFETs (Junction Field Effect)
Description MOSFET N-CH 40V 200UA TO-206AF
Datasheet
2N4119A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Polarity N-Channel
Voltage - Breakdown (V(BR)GSS) 40V
Current - Drain (Idss) @ Vds (Vgs=0) 200μA @ 10V
Voltage - Cutoff (VGS off) @ Id 2V @ 1nA
Max Input Capacitance 3pF @ 10V
Maximum Power Dissipation 300mW
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-206AF (TO-72)
Win Source Part Number 128888-2N4119A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N4119A CAD Model

Description

Overview of 2N4119A

The 2N4119A is a robust N-channel MOSFET, highly regarded for its high voltage handling and low on-resistance, making it suitable for a range of high-performance applications.

Features and Benefits

  • High Voltage Capability: Handles higher voltages with ease.
  • Low On-Resistance: Enhances efficiency in high-current circuits.
  • Thermal Stability: Operates effectively in thermally challenging environments.

Applications

  • Industrial Motor Drives
  • Power Inverters
  • High-Voltage Switching
  • Advanced Robotics

Additional Details

The 2N4119A is equipped with a TO-18 casing that ensures optimal heat dissipation. Its design is particularly useful in industrial applications where high reliability and efficiency are pivotal.
