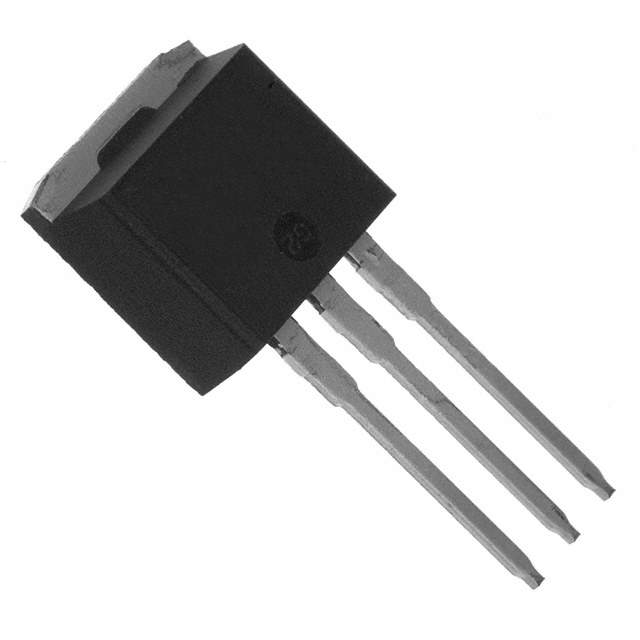

The 30CTQ080-1PBF is a dual common cathode Schottky rectifier manufactured by Vishay. It is designed for high-frequency switching power supplies, freewheeling diodes, OR-ing diodes, and reverse battery protection applications. The device features low forward voltage drop and fast switching speeds, contributing to improved efficiency and reduced power loss.

Applications:

• Switching power supplies (SMPS).
• Freewheeling diodes in inductive circuits.
• OR-ing diodes for redundant power systems.
• Reverse battery protection.
• High-frequency inverters.
• DC-DC converters.

Features:

• Dual Common Cathode: Two Schottky diodes in a single package with a common cathode connection.
• Low Forward Voltage Drop (Vf): Reduces power dissipation and improves efficiency.
• Fast Switching Speed: Minimizes switching losses in high-frequency applications.
• High Surge Current Capability: Handles transient current surges without damage.
• Repetitive Peak Reverse Voltage (Vrrm): 80V.
• Forward Current (If): 2 x 15A (30A total).
• Operating Temperature: -65°C to +175°C.
• Package: TO-220AB.
• Lead-Free (Pb-Free): Compliant with RoHS directives.

Benefits:

• Increased Efficiency: Low forward voltage drop minimizes power losses.
• Reduced Heat Dissipation: Lower Vf reduces the amount of heat generated.
• Improved System Reliability: High surge current capability protects against overcurrent events.
• Faster Switching: Minimizes switching losses in high-frequency circuits.
• Simplified Circuit Design: Dual diode configuration reduces component count.
• Environmentally Friendly: Lead-free construction complies with environmental regulations.

Additional Details:

The 30CTQ080-1PBF's dual common cathode configuration allows for efficient use in circuits requiring multiple diodes with a shared cathode. Its low forward voltage drop is crucial for maximizing efficiency in power supply applications. The TO-220AB package provides good thermal performance, allowing the device to handle significant power dissipation. The 'PBF' suffix indicates that the device is lead-free and compliant with RoHS standards. The device's fast recovery time is vital for efficient performance in high-frequency circuits.
