The 31DQ06TR is a high-performance Schottky Rectifier from Vishay Semiconductors. It is designed for applications requiring efficient rectification, fast switching speeds, and low forward voltage drop. This device is commonly used in power supplies, freewheeling diodes, and polarity protection circuits.

Applications:

• Switching power supplies
• Freewheeling diodes in inductive loads
• Polarity protection circuits
• High-frequency inverters
• DC-DC converters

Features:

• Low forward voltage drop, minimizing power losses
• High surge current capability for reliable operation under transient conditions
• Fast switching speed, enabling high-frequency operation
• Glass passivated chip junction for enhanced reliability
• RoHS compliant, ensuring environmental friendliness

Benefits:

• Improved efficiency in power conversion applications
• Reduced heat dissipation due to low forward voltage drop
• Enhanced system reliability due to high surge current capability
• Compact design suitable for space-constrained applications
• Environmentally friendly due to RoHS compliance

Specifications:

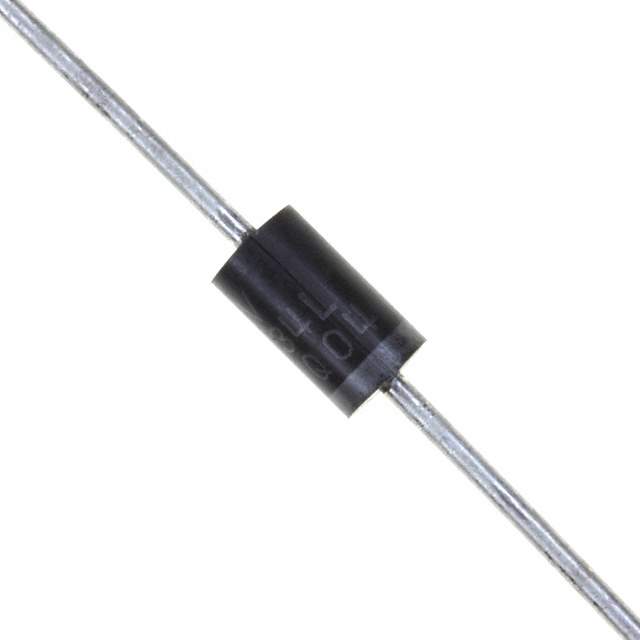

The 31DQ06TR has a maximum repetitive peak reverse voltage of 60V and a maximum average forward rectified current of 3A. The typical forward voltage is around 0.55V at 3A. It is available in a DO-201AD package. Its operating temperature range is typically from -55°C to +150°C.

This Schottky rectifier is an ideal choice for designers seeking a reliable, efficient, and high-performance diode for various power electronic applications. Its combination of low forward voltage drop, fast switching speed, and high surge current capability make it a versatile component for improving system performance and reliability.
