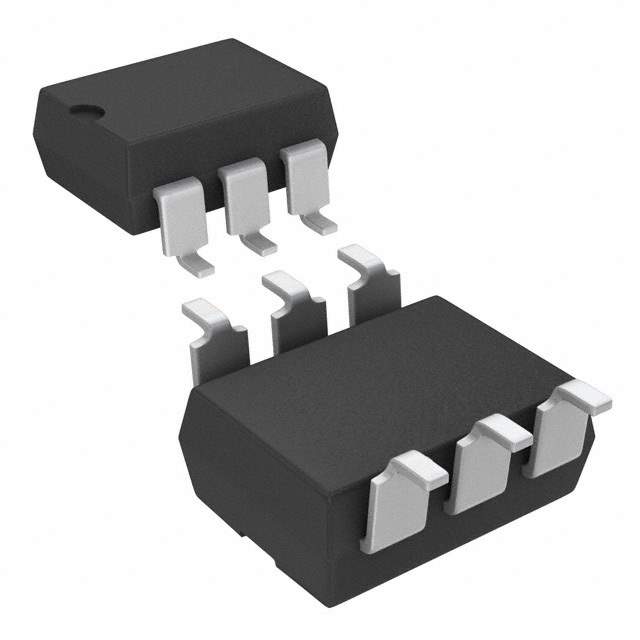

The 4N36-X009T is a high-performance single-channel optoisolator from Vishay Semiconductors. This device consists of a gallium arsenide (GaAs) infrared emitting diode (IRED) optically coupled to a silicon planar phototransistor. It is designed for high-density mounting applications and offers excellent electrical isolation between input and output circuits. The -X009T suffix indicates specific packaging and testing configurations for enhanced reliability and performance.

Applications

• Industrial control equipment
• Signal transmission between systems of different potentials and impedances
• Microprocessor input/output isolation
• Noise isolation in sensitive equipment
• Power supply regulation

Features

• High isolation voltage: Typically 5300 VRMS
• CTR (Current Transfer Ratio): Specified minimum and maximum values for predictable performance
• Operating temperature range: -55°C to +100°C
• Compact package: Suitable for high-density board mounting
• Lead-free and RoHS compliant
• High BVCEO (Collector-Emitter Breakdown Voltage)

Benefits

• Enhanced system safety due to high isolation voltage, protecting sensitive circuits from high voltage transients.
• Improved signal integrity by eliminating ground loops and reducing noise.
• Simplified circuit design through direct interface between different voltage levels.
• Increased system reliability with a wide operating temperature range and robust construction.
• Compliance with environmental regulations due to lead-free and RoHS compliance.

Additional Details

The 4N36-X009T optoisolator is characterized by its stable performance over a wide range of operating conditions. The current transfer ratio (CTR) is an important parameter that defines the efficiency of signal transfer. The specified CTR range ensures that the output transistor will be properly biased for a given input current. The isolation voltage rating indicates the maximum voltage the device can withstand between the input and output, providing a high level of safety. The device's compact size and high isolation capability make it suitable for a variety of industrial and commercial applications where electrical isolation and noise reduction are critical.
