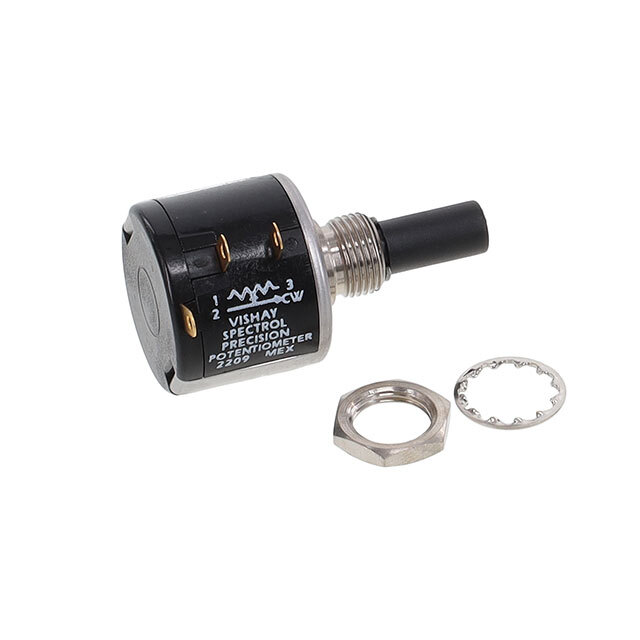

534B1204JC Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

534B1204JC

Part No 534B1204JC
Manufacturer Vishay
Catalog Rotary Potentiometers, Rheostats
Description POT 200K OHM 2W WIREWOUND LINEAR
Datasheet
534B1204JC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance (Ohms) 200k
Tolerance ±5%
Power (Watts) 2W
Built in Switch None
Number of Turns 10.0
Features High Torque
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient 20ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Type Panel Mount
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1593460-534B1204JC
Ultra Librarian 3D Model Ultra Librarian 534B1204JC CAD Model
