Same model may have multiple batches, images only for reference.

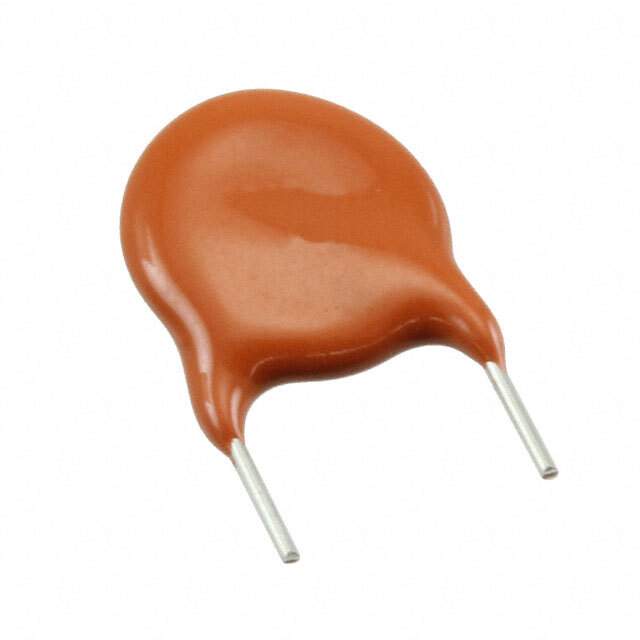

562R5GAD47TK Real Image
Same model may have multiple batches, images only for reference.

562R5GAD47TK

Part No 562R5GAD47TK
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 4700PF 1KV Z5U RADIAL
Datasheet
562R5GAD47TK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay BC Components
Series Cera-Mite 562R
Packaging Bulk
Capacitance 4700pF
Tolerance ±10%
Voltage Rating DC 1000V (1kV)
Temperature Coefficient Z5U
Operating Temperature Range -55°C ~ 105°C
Applications General
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.370" Dia (9.40mm)
Height - Seated (Maximum) 0.495" (12.58mm)
Lead Spacing 0.252" (6.40mm)
Lead Style Straight
Win Source Part Number 764056-562R5GAD47TK
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 562R5GAD47TK CAD Model

Description

The Vishay BC Components Cera-Mite 562R electronic component from Vishay has a limited supply and demand status.

  • Capacitance: 4700pF
  • Tolerance: ±10%
  • Temperature Coefficient: Z5U
  • Lead Spacing: 0.252" (6.40mm)
  • Package: Radial, Disc
  • Mounting Style: Through Hole
  • Operating Temperature Range: -55°C to 105°C
