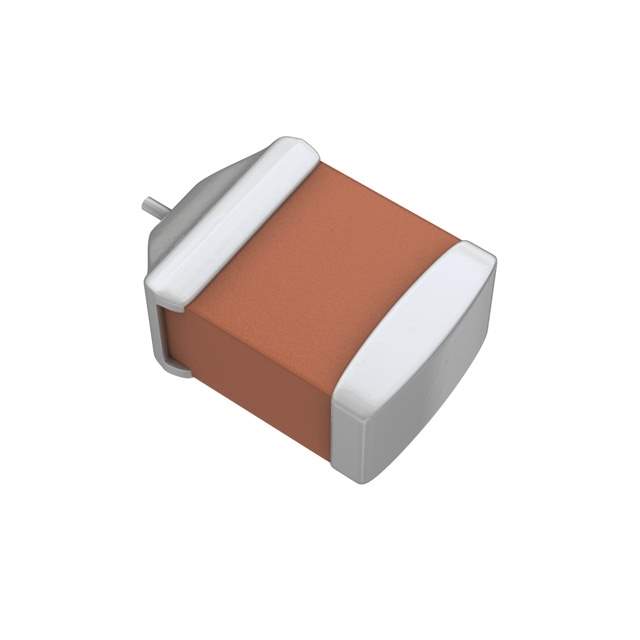

592D475X9020B2T15H Real Image
Same model may have multiple batches, images only for reference.

592D475X9020B2T15H

Part No 592D475X9020B2T15H
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 4.7UF 10% 20V 1611  /  4.7 µF Conformal Coated Tantalum Capacitors 20 V 1611 (4028 Metric) 3.2Ohm
Datasheet
592D475X9020B2T15H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 592D
Package Tape & Reel (TR)
Capacitance 4.7 µF
Tolerance ±10%
Voltage - Rated 20 V
Type Conformal Coated
ESR (Equivalent Series Resistance) 3.2Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1611 (4028 Metric)
Dimension 0.157" L x 0.110" W (4.00mm x 2.80mm)
Height - Seated (Max) 0.059" (1.50mm)
Manufacturer Size Code B
Features General Purpose
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Standard Package 2,000
Win Source Part Number 1129783-592D475X9020B2T15H
Ultra Librarian 3D Model Ultra Librarian 592D475X9020B2T15H CAD Model

Description

The 592D475X9020B2T15H is a tantalum capacitor from Vishay Sprague.

  • Series: TANTAMOUNT® 592D
  • Capacitance: 4.7 µF
  • Tolerance: ±10%
  • Voltage Rating: 20V
  • ESR: 3.2Ohm
  • Coating: Conformal Coated
  • Format: Tape and Reel
  • Pieces per Package: 2,000
  • Manufacturer Size Code: B
  • Package/Case: 1611 (4028 Metric)
  • Dimension: 0.157" L x 0.110" W (4.00mm x 2.80mm)
  • Temperature Range: -55°C to 125°C
  • RoHS: RoHS Unaffected
  • REACH Status: REACH Unaffected
  • MSL Level: 2A (4 Weeks)
