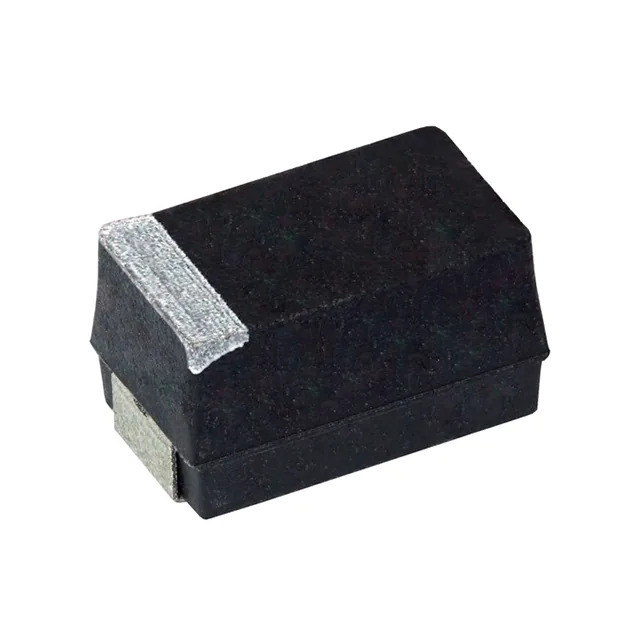

Same model may have multiple batches, images only for reference.
593D107X0020E2TE3 Vishay
Same model may have multiple batches, images only for reference.

593D107X0020E2TE3

Part No 593D107X0020E2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 100UF 20% 20V 2917 / 100 µF Molded Tantalum Capacitors 20 V 2917 (7343 Metric) 150mOhm
Datasheet
593D107X0020E2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 593D
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 150mOhm
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.170" (4.32mm)
Lead Spacing -
Manufacturer Size Code E
Features General Purpose
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1359801-593D107X0020E2TE3
Ultra Librarian 3D Model Ultra Librarian 593D107X0020E2TE3 CAD Model

Description

The 593D107X0020E2TE3 is a molded tantalum capacitor manufactured by Vishay Sprague.

  • Capacitance: 100µF
  • Voltage Rating: 20V
  • Tolerance: ±20%
  • ESR: 150mOhm
  • Series: TANTAMOUNT®, 593D
  • Application: General-Purpose
  • Package: 2917 (7343 Metric) Tape & Reel
  • Mounting Type: Surface Mountable
  • Operating Temperature: -55°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
