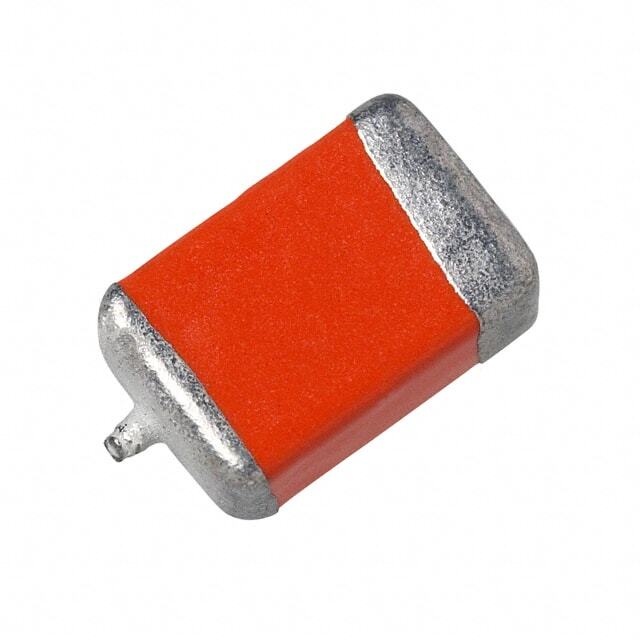

Same model may have multiple batches, images only for reference.

594D156X9050R2T

Name: 594D156X9050R2T
Brand: Vishay
SKU: 846428
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	594D156X9050R2T
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 15UF 10% 50V 2824
Datasheet	594D156X9050R2T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Tantalum Capacitors
Mfr	Vishay
Series	TANTAMOUNT®, 594D
Package	Tape & Reel
Product Status	Active
Capacitance	15 µF
Tolerance	±10%
Voltage - Rated	50 V
Type	Conformal Coated
ESR (Equivalent Series Resistance)	350mOhm
Temperature Range - Operating	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	2824 (7260 Metric)
Size / Dimension	0.283" L x 0.236" W (7.20mm x 6.00mm)
Height - Seated (Max)	0.148" (3.75mm)
Manufacturer Size Code	R
Features	General Purpose
Standard Package	600 pcs
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8532.21.0050
Win Source Part Number	846428-594D156X9050R2T
Ultra Librarian 3D Model	Ultra Librarian 594D156X9050R2T CAD Model

Alternative Products

Description

The 846428-594D156X9050R2T is a tantalum capacitor from the TANTAMOUNT, 594D series. It has a capacitance of 15μF with a tolerance of ±10%.

Voltage Rating: 50V
ESR: 350mΩ
Coating: Conformal Coated
Application: General Purpose
Mounting Type: Surface Mount
Size: 0.283" L x 0.236" W (7.20mm x 6.00mm)
Height: 0.148" (3.75mm)
Operating Temperature: -55°C to 125°C
