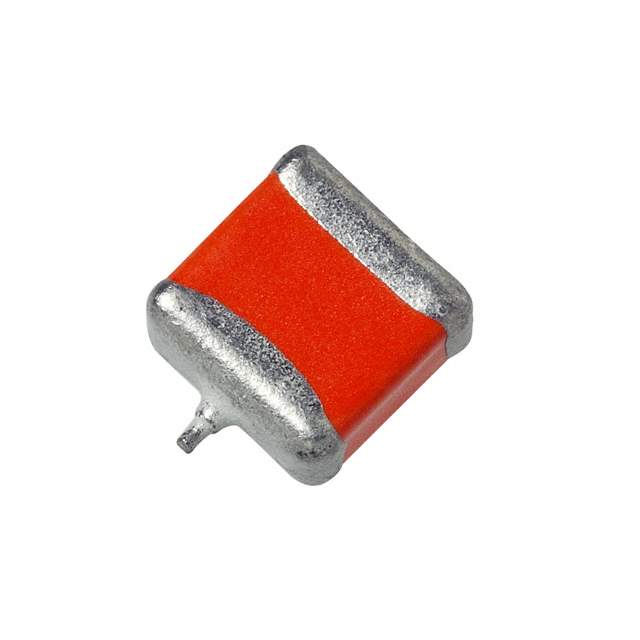

The 595D107X0020D2T is a solid tantalum capacitor manufactured by Vishay. It belongs to the 595D series, which features a molded case and surface mount design. These capacitors are known for their high capacitance values and are commonly used in power supply filtering, decoupling, and energy storage applications.

Applications

• Power supply filtering
• Decoupling in high-speed digital circuits
• Energy storage
• DC-DC converters
• Portable electronic devices

Features

• Surface mount design (SMD)
• Molded case
• Solid tantalum construction
• High capacitance value
• Low ESR (Equivalent Series Resistance)
• RoHS compliant

Benefits

• Reduces ripple voltage in power supplies
• Suppresses noise in digital circuits
• Provides energy storage for backup power
• Improves the efficiency of DC-DC converters
• Saves board space due to small size

Additional Details

The 595D107X0020D2T has a capacitance of 100 µF and a voltage rating of 20 VDC. Its tolerance is ±20%. It is designed for reflow soldering and is available in standard tape and reel packaging. The operating temperature range is typically -55°C to +125°C. The low ESR value makes it suitable for high-frequency applications. Proper handling and storage are crucial to prevent damage to the capacitor. Refer to the Vishay datasheet for detailed specifications, including dimensions, ESR values, ripple current ratings, and recommended soldering profiles.

This tantalum capacitor offers a high-performance solution for demanding applications requiring high capacitance and low ESR. Its small size and RoHS compliance make it a popular choice for modern electronic designs.
