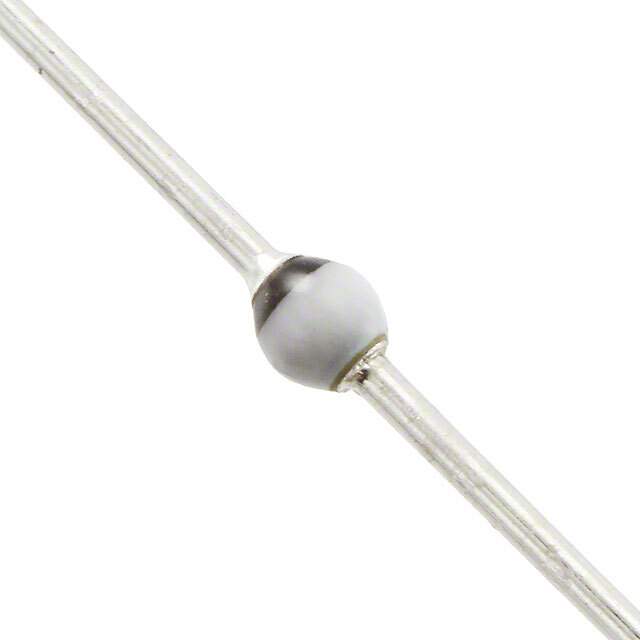

BYT56M-TR Real Image
Same model may have multiple batches, images only for reference.

BYT56M-TR

Part No BYT56M-TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE AVALANCHE 1000V 3A SOD64
Datasheet
BYT56M-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Avalanche
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.4V @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 100ns
Current - Reverse Leakage @ Vr 5μA @ 1000V
Mounting Through Hole
Case / Package SOD-64
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1025608-BYT56M-TR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial, Defence, Military & Aerospace
Ultra Librarian 3D Model Ultra Librarian BYT56M-TR CAD Model

Description

The Vishay BYT56M-TR is an avalanche diode that is designed for use in various applications, including rectification and overvoltage protection.

  • Maximum Voltage Reverse: 1000V
  • Current Average Rectified: 3A
  • Voltage Forward: 1.4V @ 3A
  • Reverse Recovery Time: 100ns
  • Mounting Type: Through-Hole
  • Temperature Range: -55°C to 175°C
  • Applications: Industrial, Defense, Military, and Aerospace
