Same model may have multiple batches, images only for reference.

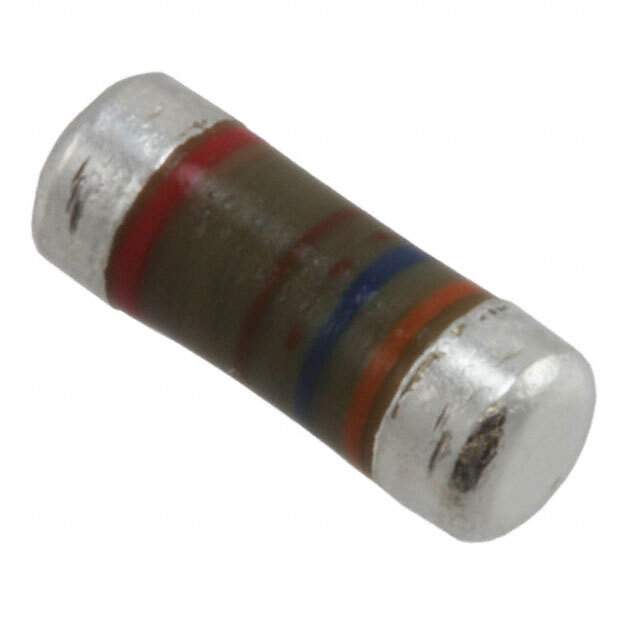

CMB02070X2208JB200 Real Image
Same model may have multiple batches, images only for reference.

CMB02070X2208JB200

Part No CMB02070X2208JB200
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.2 OHM 5% 1W 0207 / 2.2 Ohms ±5% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Carbon Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series CMB
Package Tape & Reel
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Carbon Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package 0207
Ratings AEC-Q200
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.10.0042
Other Names CMB-2.2TR,CMB-2.2DKR,CMB-2.2CT
Standard Package 2,000
Win Source Part Number 1052576-CMB02070X2208JB200
Ultra Librarian 3D Model Ultra Librarian CMB02070X2208JB200 CAD Model

Description

The Vishay CMB02070X2208JB200 is a chip resistor that has a 2.2 ohm resistance and a power rating of 1 W.

  • Resistance: 2.2 ohm
  • Power Rating: 1 W
  • Resistor Type: Carbon Film
  • Tolerance: ±5%
  • AEC-Q200: Rated
  • Package/Case: MELF 0207
  • Device Package: 0207
  • Operating Temperature: -55°C to 155°C
  • Features: Anti-Sulfur, Pulse-withstanding
  • Application: Automotive
  • RoHS Compliant: Yes
  • Packaging: Tape and Reel
