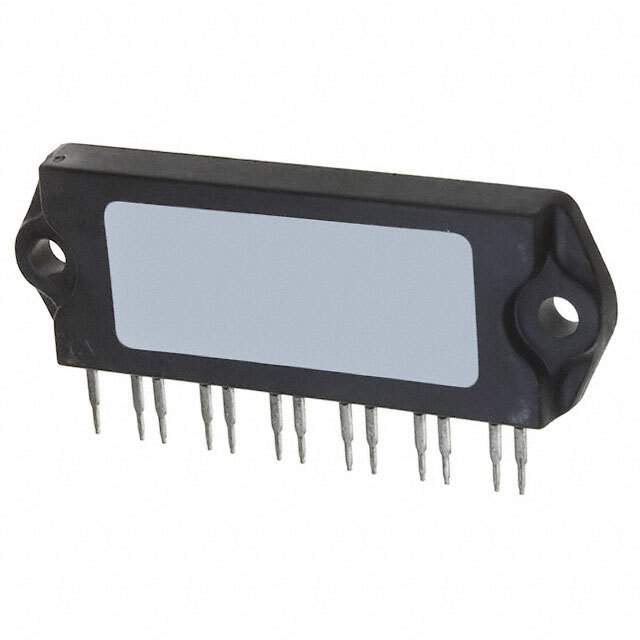

CPV363M4KPBF

Part No CPV363M4KPBF
Manufacturer Vishay
Catalog IGBTs - Modules
Description MOD IGBT 3PHASE INV 600V SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 11A
Maximum Power Dissipation 36W
Collector-emitter saturation voltage(Max) 2.1V @ 15V, 6A
Collector Cut-off Current(Max) 250μA
Input Capacitance (Cies) @ Vce 0.74nF @ 30V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package IMS-2
Win Source Part Number 202789-CPV363M4KPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CPV363M4KPBF CAD Model

Description

Product Overview

The CPV363M4KPBF is an innovative power management solution, providing consistent voltage regulation with minimal energy loss. This component is pivotal for sustaining the operational efficiency of sensitive electronic equipment.

Features and Benefits

  • Low power consumption with enhanced efficiency
  • Extended temperature range for versatile use
  • Environmentally friendly lead-free (Pb-free) design
  • Integrated overcurrent protection

Applications

  • Advanced computing systems
  • Renewable energy management
  • Consumer electronics
  • Medical devices
  • Signal processing equipment

Known for its eco-friendly design and exceptional efficiency, the CPV363M4KPBF is suitable for a wide range of applications, ensuring reliable power management in various scenarios.
