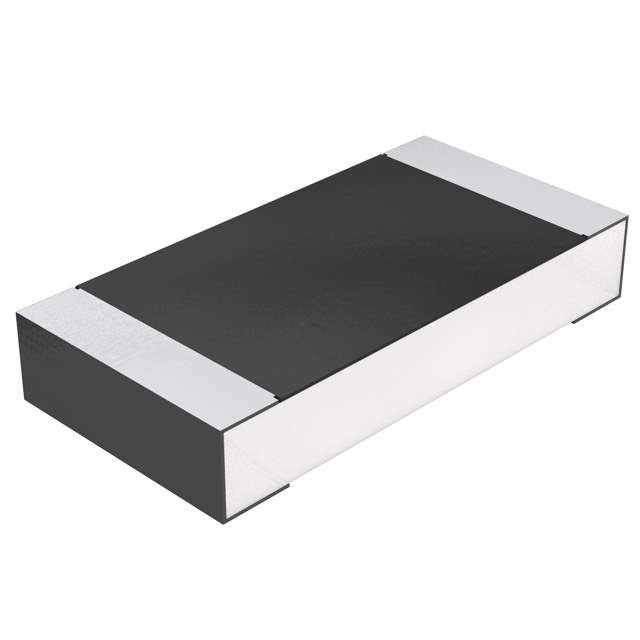

Same model may have multiple batches, images only for reference.

CRCW12062R20FKEA

Name: CRCW12062R20FKEA
Brand: Vishay
SKU: 1330026
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CRCW12062R20FKEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 2.2 OHM 1% 1/4W 1206 / 2.2 Ohms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Datasheet	CRCW12062R20FKEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	2.2 Ohms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	1206 (3216 Metric)
Supplier Device Package	1206
Ratings	AEC-Q200
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Base Product Number	CRCW1206
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	541-2.20FFTR,541-2.20FFDKR,541-2.20FFCT
Standard Package	5,000
Win Source Part Number	1330026-CRCW12062R20FKEA
Ultra Librarian 3D Model	Ultra Librarian CRCW12062R20FKEA CAD Model

Alternative Products

Description

The Vishay Dale CRCW12062R20FKEA is a chip resistor that is widely used in surface mount applications.

Resistance: 2.2 Ohms
Power Rating: 0.25W (1/4W)
Tolerance: ±1%
Temperature Coefficient: ±100ppm/°C
Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height: 0.024" (0.60mm)
AEC-Q200 Standards: Compliant
Win Source Part Number: 1330026-CRCW12062R20FKEA
