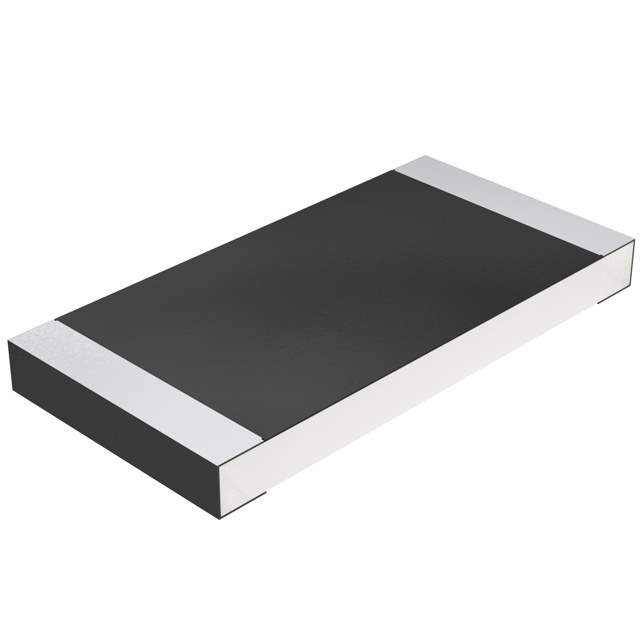

The Vishay CRCW25121R00JNEG is a thick film chip resistor with a resistance value of 1.0 Ohm. It is designed for surface mount applications and offers excellent stability and reliability. The resistor is manufactured using a robust construction and high-quality materials, ensuring consistent performance in various environmental conditions.

Applications

• Current sensing circuits
• Voltage dividers
• Pull-up/pull-down resistors
• Load resistors
• Termination resistors

Features

• Resistance Value: 1.0 Ohm
• Tolerance: 5%
• Power Rating: 1 Watt
• Temperature Coefficient: ±200 ppm/°C
• Package Size: 2512 (6432 metric)
• Termination: Surface Mount
• Construction: Thick Film

Benefits

• High Power Dissipation: Can handle up to 1 Watt of power, suitable for high-power applications.
• Stable Performance: Provides consistent resistance value over a wide temperature range.
• Reliable Operation: Robust construction ensures long-term reliability.
• Easy to Use: Surface mount design allows for easy assembly on printed circuit boards.
• Cost-Effective: Provides a cost-effective solution for various resistor applications.

Additional Details

The CRCW2512 series from Vishay offers a wide range of resistance values and tolerances to meet diverse application requirements. The resistor is designed to withstand high temperatures and humidity, making it suitable for harsh environments. It is also RoHS compliant, ensuring compliance with environmental regulations. The 2512 package size provides a good balance between power dissipation and board space. Proper soldering techniques should be followed to ensure reliable electrical connections. The Vishay CRCW25121R00JNEG is a reliable and versatile resistor suitable for a wide range of applications.
