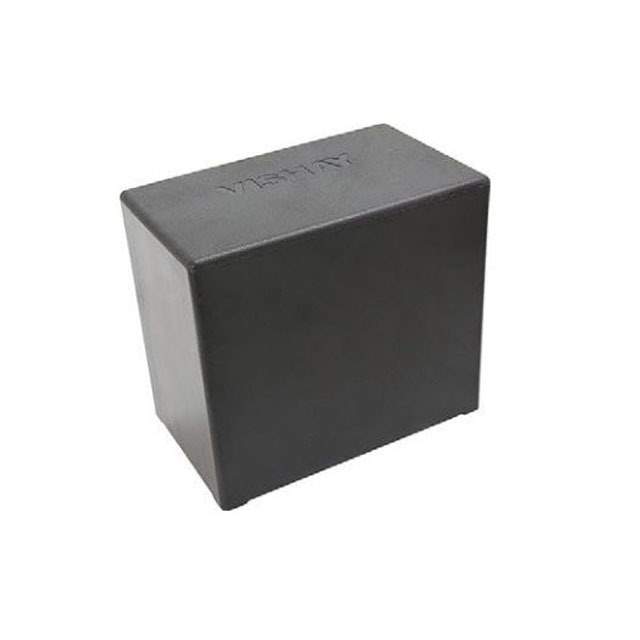

Same model may have multiple batches, images only for reference.

F340X152248MPP2T0

Name: F340X152248MPP2T0
Brand: Vishay
SKU: 1339373
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	F340X152248MPP2T0
Manufacturer	Vishay
Catalog	Film Capacitors
Description	CAP FILM 2.2UF 20% 800VDC RADIAL / 2.2 µF Film Capacitor 480V, 530V 800V Polypropylene (PP), Metallized Radial
Datasheet	F340X152248MPP2T0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Film Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	F340X1
Package	Tray
Capacitance	2.2 µF
Tolerance	±20%
Voltage Rating - AC	480V, 530V
Voltage Rating - DC	800V
Dielectric Material	Polypropylene (PP) , Metallized
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.654" L x 0.846" W (42.00mm x 21.50mm)
Height - Seated (Max)	1.543" (39.20mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	EMI, RFI Suppression; 3 Phase
Ratings	X1
Features	85C/85% Humidity
Standard Package	91
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8532.25.0020
Win Source Part Number	1339373-F340X152248MPP2T0
Ultra Librarian 3D Model	Ultra Librarian F340X152248MPP2T0 CAD Model

Alternative Products

Description

The F340X152248MPP2T0 from Vishay Beyschlag/Draloric/BC Components is a film capacitor with a capacitance of 2.2μF and a tolerance of ±20%.

Capacitance: 2.2μF
Tolerance: ±20%
Voltage Rating - AC: 480V AC
Voltage Rating - DC: 800V DC
Application: EMI, RFI Suppression; 3 Phase
Package / Case: Radial
Operating Temperature: -40°C to 105°C
Height - Seated (Max): 1.543" (39.20mm)
Lead Spacing: 1.476" (37.50mm)
