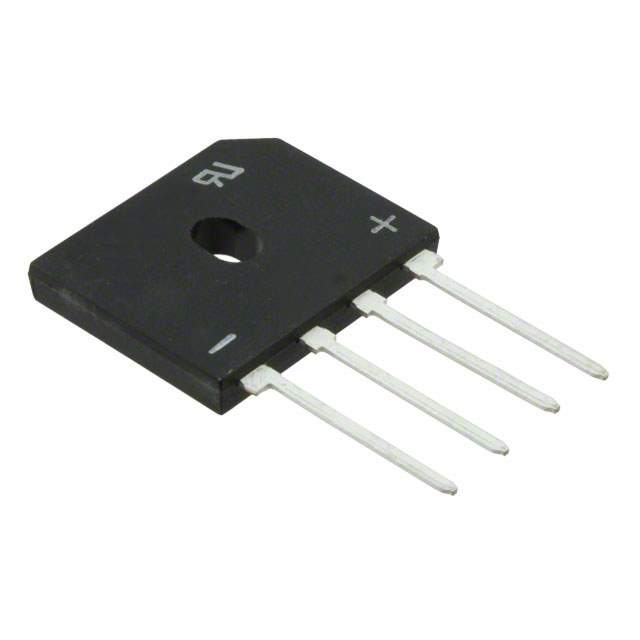

G3SBA60-E3/45 Real Image
Same model may have multiple batches, images only for reference.

G3SBA60-E3/45

Part No G3SBA60-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE GPP 1PH 4A 600V GBU / Diode Rectifier Bridge Single 600V 2.3A 4-Pin Case GBU Tube
Datasheet
G3SBA60-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Part Status Obsolete(EOL)
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 2.3A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 2A
Current - Reverse Leakage @ Vr 5μA @ 600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 774868-G3SBA60-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name G3SBA60
Introduction Date February 24, 1999
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian G3SBA60-E3/45 CAD Model

Description

The Vishay Semiconductor Diodes Division G3SBA60-E3/45 is a standard technology single phase diode.

  • Voltage Peak Reverse: 600V
  • Voltage Forward: 1V @ 2A
  • Current Average Rectified: 2.3A
  • Current Reverse Leakage: 5μA @ 600V
  • Package: 4-SIP, GBU
  • Mounting: Through hole
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • EOL Status: Obsolete (EOL), Estimated EOL date of 2031
  • Alternative Parts (cross-reference): KBJ2J-G, KBJ2J, GBL206M
