Same model may have multiple batches, images only for reference.

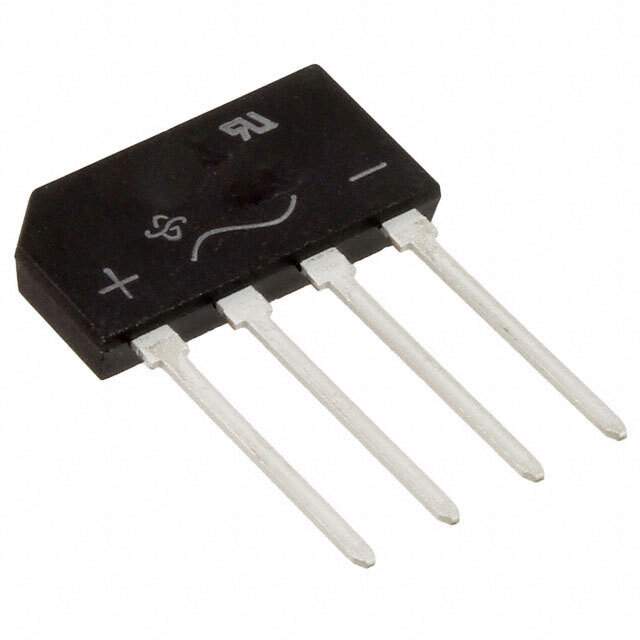

GBL08-E3/45 Real Image
Same model may have multiple batches, images only for reference.

GBL08-E3/45

Part No GBL08-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Glass Passivated Single-Phase Bridge Rectifier
Datasheet
GBL08-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 2A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBL
Manufacturer Package GBL
Win Source Part Number 1176944-GBL08-E3/45
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Family Name GBL08
Introduction Date June 18, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian GBL08-E3/45 CAD Model

Description

The GBL08-E3/45 is a single-phase diode from Vishay Semiconductor Diodes Division.

  • Type: Standard Diode
  • Current Rating: 3A
  • Voltage Rating: 800V
  • Package: 4-SIP GBL
  • Mounting: Through Hole
  • Operating Temperature: -55℃ to 150℃
  • Estimated EOL Date: 2028
