Same model may have multiple batches, images only for reference.

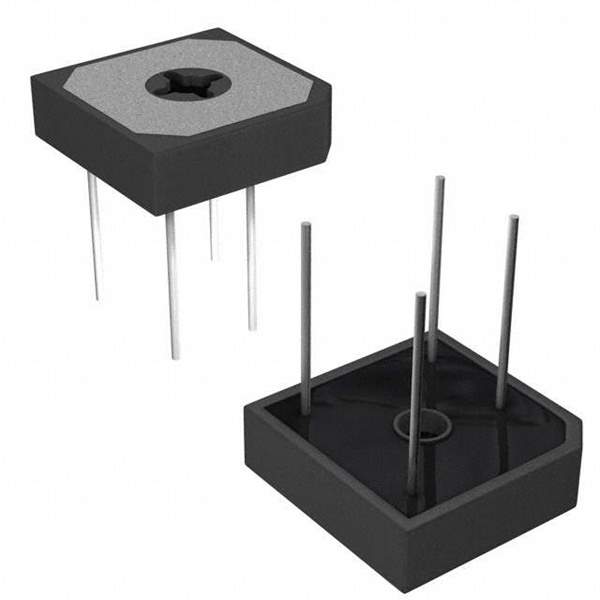

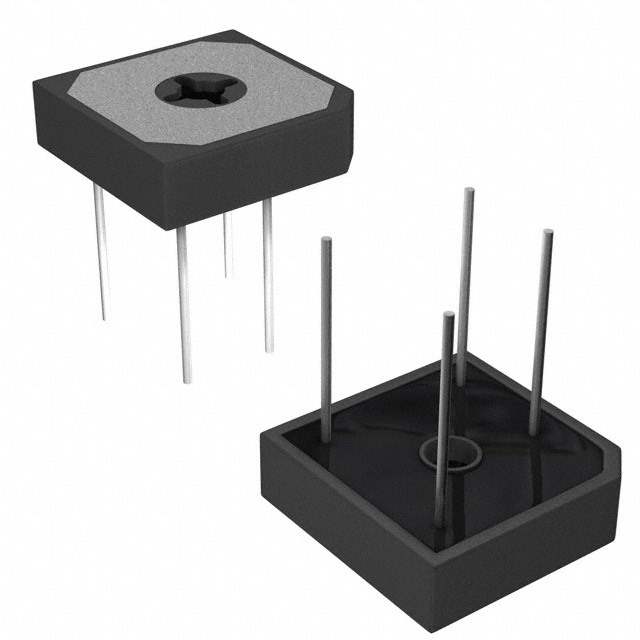

GBPC3508W-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC3508W-E4/51

Part No GBPC3508W-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Rectifier Bridge Diode Single 800V 35A 4-Pin Case GBPC-W Bulk / RECTIFIER BRIDGE 35A 800V GBPC-
Datasheet
GBPC3508W-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBPC-W
Win Source Part Number 088619-GBPC3508W-E4/51
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name GBPC3508
Introduction Date January 05, 1990
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian GBPC3508W-E4/51 CAD Model

Description

The Vishay 143176 is a GBPC3508W-E4/51 series single-phase standard diode.

  • Average Rectified Current: 35A
  • Peak Reverse Voltage: 800V
  • Forward Voltage (Vf): 1.1V @ 17.5A
  • Reverse Leakage Current: 5μA @ 800V
  • Mounting: Through Hole
  • Package: Bulk
  • Operating Temperature: -55°C to 150°C (TJ)
  • Supply and Demand: Limited
