Same model may have multiple batches, images only for reference.

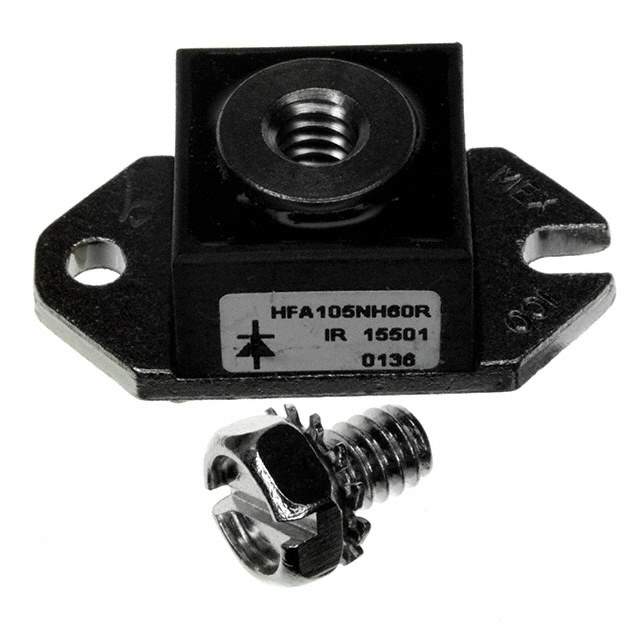

HFA105NH60R Real Image
Same model may have multiple batches, images only for reference.

HFA105NH60R

Part No HFA105NH60R
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description HEXFRED™ Ultrafast, Soft Recovery Diode | DIODE GEN PURP 600V 105A HALFPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 105A
Voltage - Forward (Vf) (Maximum) at If 1.5V at 105A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 140ns
Current - Reverse Leakage at Vr 30μA at 600V
Mounting Style Chassis Mount
Manufacturer Package D-67 HALF-PAK
Supplier Device Package HALF-PAK
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1180090-HFA105NH60R
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HFA105NH60R CAD Model

Description

The Vishay Semiconductor Diodes Division HFA105NH60R is an obsolete electronic component with a medium popularity.

  • Diode Type: Standard
  • Average Rectified Current: 105A
  • Reverse Recovery Time (trr): 140ns
  • Voltage DC Reverse: 600V
  • Voltage Forward @ If: 1.5V @ 105A
  • Device Package: HALF-PAK
  • Manufacturer Package: D-67 HALF-PAK
  • Mounting Style: Chassis mount
  • Speed: Fast recovery = 200mA (Io)
