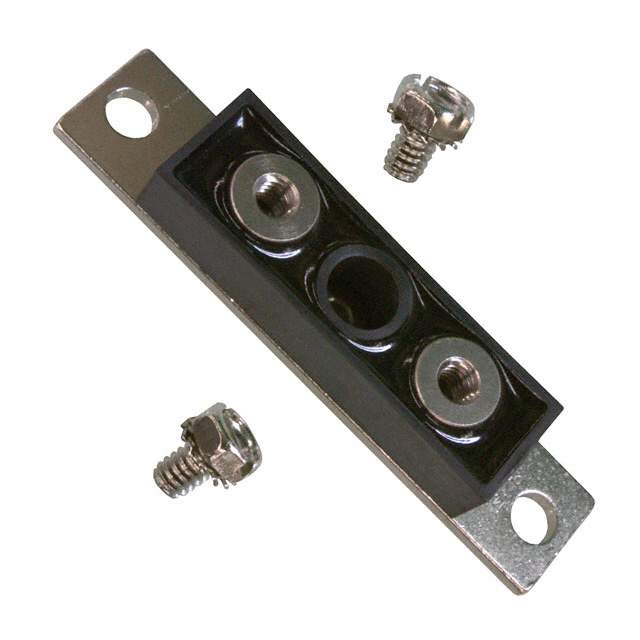

HFA240NJ40D Real Image
Same model may have multiple batches, images only for reference.

HFA240NJ40D

Part No HFA240NJ40D
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description Ultrafast, Soft Recovery Diode | DIODE MODULE 400V 244A TO244AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 400V
Current - Average Rectified (Io) (per Diode) 244A (DC)
Voltage - Forward (Vf) (Maximum) at If 1.5V at 240A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 120ns
Current - Reverse Leakage at Vr 9μA at 400V
Mounting Style Chassis Mount
Manufacturer Package TO-244AB Isolated Tab
Supplier Device Package TO-244AB (Isolated)
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1180142-HFA240NJ40D
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HFA240NJ40D CAD Model

Description

The Vishay Semiconductor Diodes Division electronic component with Win Source Part Number 1180142-HFA240NJ40D is a standard diode.

  • Voltage Rating: 400V DC reverse
  • Forward Voltage: 1.5V @ 240A
  • Reverse Recovery Time: 120ns
  • Current Rating: 244A per diode
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand Status: Limited
