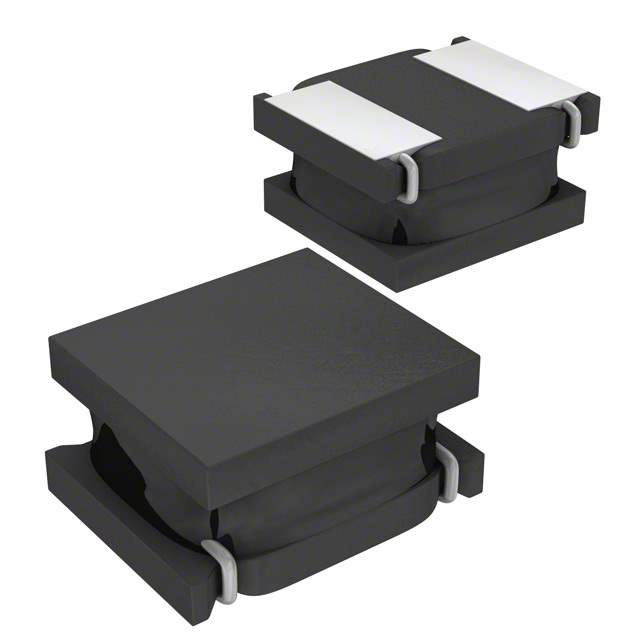

Same model may have multiple batches, images only for reference.

IFSC1008ABER2R2M01

Name: IFSC1008ABER2R2M01
Brand: Vishay
SKU: 802771
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IFSC1008ABER2R2M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 1.85A 90 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Vishay Dale
Packaging	Reel
Inductance	2.2μH
Tolerance	±20%
Current Rating (Amps)	1.85A
Current - Saturation	2.15A
Shielding	Shielded
DC Resistance (DCR)	90mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum)	0.047" (1.20mm)
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802771-IFSC1008ABER2R2M01
Ultra Librarian 3D Model	Ultra Librarian IFSC1008ABER2R2M01 CAD Model

Alternative Products

Description

The IFSC1008ABER2R2M01 is a shielded inductor manufactured by Vishay Dale.

Win Source Part Number: 802771-IFSC1008ABER2R2M01
Packaging: reel
Type: -
Mounting Style: SMD
Inductance: 2.2μH
Tolerance: ±20%
Current Saturation: 2.15A
DC Resistance (DCR): 90mOhm Max
Operating Temperature Range: -55°C to 125°C
Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Supply and Demand Status: balanced
Manufacturer Pack Quantity: 2,000
Current Rating (amps): 1.85A
Inductance Frequency Test: 100kHz
