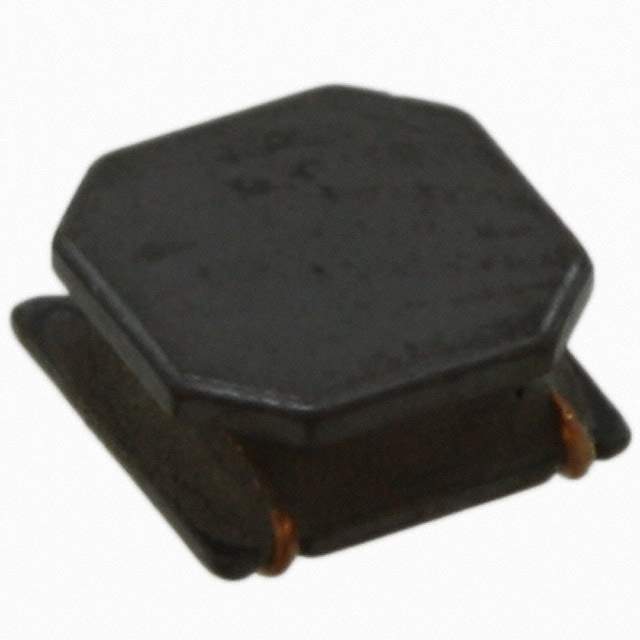

Same model may have multiple batches, images only for reference.

IFSC1515AHER150M01

Name: IFSC1515AHER150M01
Brand: Vishay
SKU: 1157557
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IFSC1515AHER150M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 15UH 1.25A 222MOHM SMD / 15 µH Shielded Inductor 1.25 A 222mOhm Max Nonstandard
Datasheet	IFSC1515AHER150M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IFSC-1515AH-01
Package	Tape & Reel
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	1.25 A
Current - Saturation (Isat)	1A
Shielding	Shielded
DC Resistance (DCR)	222mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.075" (1.90mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-4328-6,541-4328-2,IFSC1515AHER150M01-ND,541-4328-1
Standard Package	2,000
Win Source Part Number	1157557-IFSC1515AHER150M01
Ultra Librarian 3D Model	Ultra Librarian IFSC1515AHER150M01 CAD Model

Alternative Products

Description

The IFSC-1515AH-01 is a fixed inductor manufactured by Vishay Dale.

Inductance: 15 µH
Maximum DC Resistance: 222mOhm
Package: Nonstandard
Mounting: SMD (SMT)
Tolerance: ±20%
Suitable for: Use in a variety of applications
