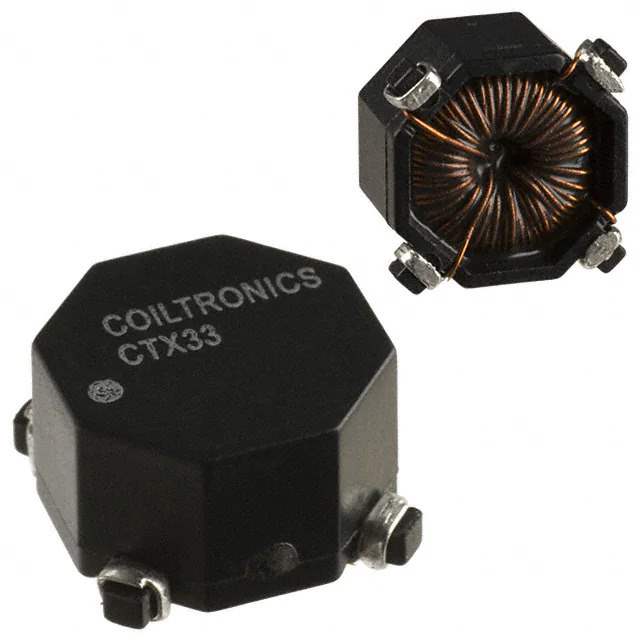

CTX33-4-R Real Image
Same model may have multiple batches, images only for reference.

CTX33-4-R

Part No CTX33-4-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 33.12UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Arrays, Signal Transformers
Mfr Eaton Bussmann
Series OCTA-PAC®
Package Tape & Reel
Product Status Active
Number of Coils 2
Inductance - Connected In Parallel 33.12 µH
Inductance - Connected In Series 132.5 µH
Tolerance ±20%
Current Rating - Parallel 1.8 A
Current Rating - Series 900 mA
DC Resistance (DCR) - Parallel 72mOhm Max
DC Resistance (DCR) - Series 287mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height 0.250" (6.35mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 580993-CTX33-4-R
Ultra Librarian 3D Model Ultra Librarian CTX33-4-R CAD Model

Description

The 580993-CTX33-4-R is an OCTA-PAC® series inductor, coil, and choke.

  • Application: Signal transformers
  • Package: Tape and reel
  • Size: 0.550" L x 0.550" W (13.97mm x 13.97mm)
  • Height: 0.250" (6.35mm)
  • Coils: Two
  • Inductance (Series): 132.5 µH
  • Inductance (Parallel): 33.12 µH
  • Current Rating (Series): 900 mA
  • Current Rating (Parallel): 1.8 A
  • DC Resistance (Series): 287mOhm max
  • DC Resistance (Parallel): 72mOhm max
  • Mounting: Surface mount
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Eaton Bussmann
  • Package: Nonstandard
