Same model may have multiple batches, images only for reference.

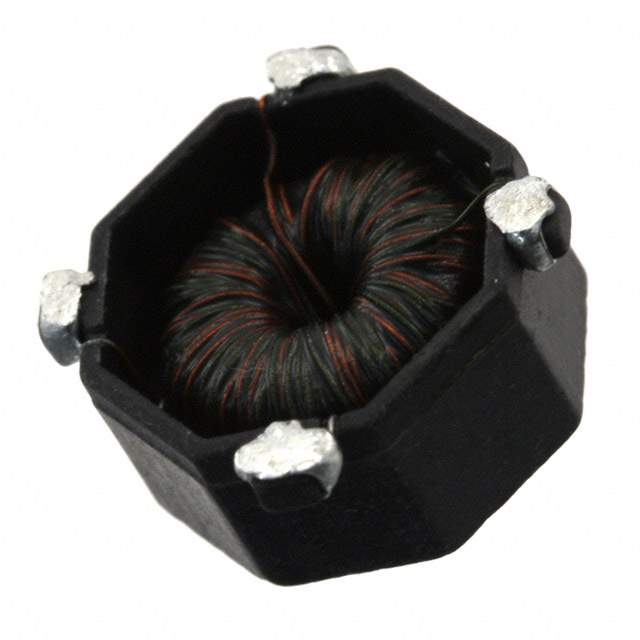

CTX200-4-R Real Image
Same model may have multiple batches, images only for reference.

CTX200-4-R

Part No CTX200-4-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 200.7UH SMD
Datasheet
CTX200-4-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 802.82μH
Inductance - Connected In Parallel 200.7μH
Tolerance ±20%
Current Rating - Parallel 640mA
Current Rating - Series 320mA
DC Resistance (DCR) - Parallel 545 mOhm Max
DC Resistance (DCR) - Series 2.18 Ohm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 000300-CTX200-4-R
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian CTX200-4-R CAD Model

Description

CTX200-4-R Electronic Component

The CTX200-4-R is a versatile component known for its superior electrical performance in high-demand applications.

  • Applications: Data centers, Network infrastructure, High-frequency communications, Energy management systems
  • Features & Benefits: High-density feature for scalability, Superior conductivity with minimal loss, Protects against voltage fluctuations
  • Additional Details: Designed for continuous operation under challenging conditions, Environmentally friendly with recyclable materials
