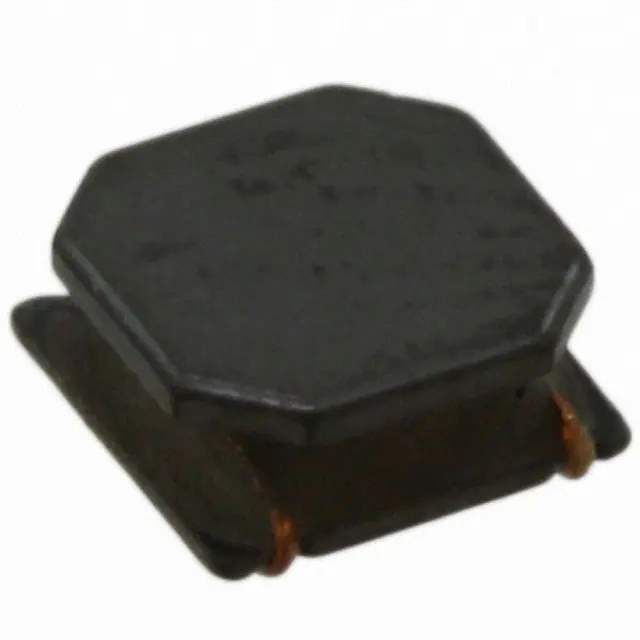

Same model may have multiple batches, images only for reference.

IFSC1515AHER1R0M01

Name: IFSC1515AHER1R0M01
Brand: Vishay
SKU: 874415
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IFSC1515AHER1R0M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 1UH 3.8A 25 MOHM SMD / 1 μH Shielded Inductor 3.8 A 25mOhm Max Nonstandard
Datasheet	IFSC1515AHER1R0M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Vishay
Series	IFSC-1515AH-01
Package	Tape & Reel
Product Status	Active
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	3.8 A
Current - Saturation (Isat)	3.8A
Shielding	Shielded
DC Resistance (DCR)	25mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.075" (1.90mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	874415-IFSC1515AHER1R0M01
Ultra Librarian 3D Model	Ultra Librarian IFSC1515AHER1R0M01 CAD Model

Alternative Products

Description

The 874415-IFSC1515AHER1R0M01 is a fixed inductor from Vishay's IFSC-1515AH-01 series.

Series: IFSC-1515AH-01
Shielding: Shielded
Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height: 0.075" (1.90mm)
Inductance: 1 µH
Tolerance: ±20%
DC Resistance (DCR): 25mOhm (maximum)
Mounting: Surface Mount
Temperature Range: -55°C to 125°C
Status: Active
