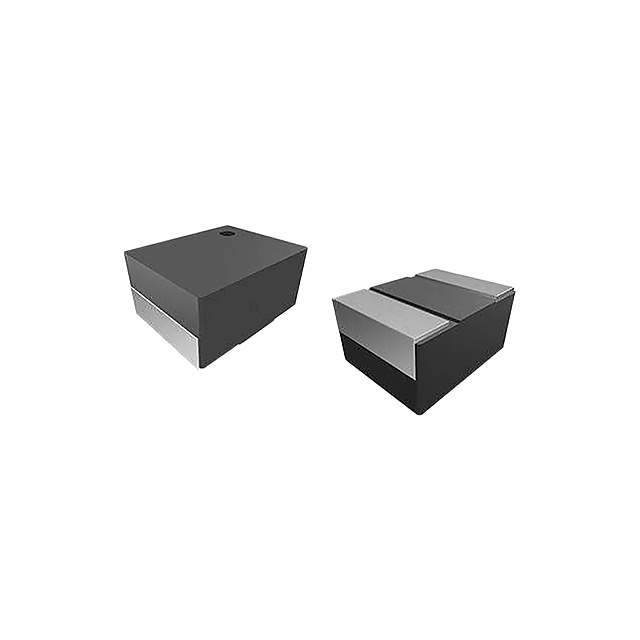

Same model may have multiple batches, images only for reference.

IHHP1008ABERR47M01

Name: IHHP1008ABERR47M01
Brand: Vishay
SKU: 1062916
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHHP1008ABERR47M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 470NH 4.5A 24 MOHM SMD / 470 nH Shielded Inductor 4.5 A 24mOhm Max 1008 (2520 Metric)
Datasheet	IHHP1008ABERR47M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHHP-1008AB-01
Package	Tape & Reel
Inductance	470 nH
Tolerance	±20%
Current Rating (Amps)	4.5 A
Current - Saturation (Isat)	4.8A
Shielding	Shielded
DC Resistance (DCR)	24mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	1008 (2520 Metric)
Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	541-2674-1,541-2674-2,541-2674-6
Standard Package	2,000
Win Source Part Number	1062916-IHHP1008ABERR47M01
Ultra Librarian 3D Model	Ultra Librarian IHHP1008ABERR47M01 CAD Model

Alternative Products

Description

The Vishay IHHP1008ABERR47M01 is a fixed inductor with a shielded package and a 470 nH inductance.

Inductance: 470 nH
Tolerance: ±20%
Temperature Range: -55°C to 125°C
Package: Tape & reel
Pieces per Package: 2000
DC Resistance (DCR): 24mOhm Max
Current Rating: 4.5 A
Seated Height: 0.047" (1.20mm)
Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
MSL Level: 1 (Unlimited)
