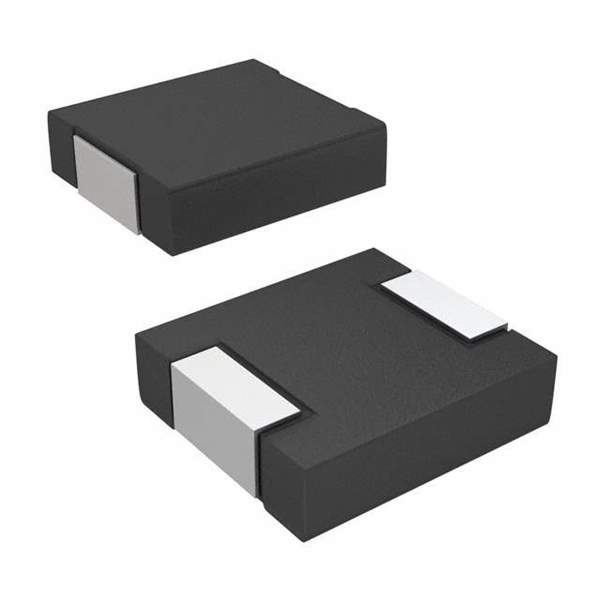

Same model may have multiple batches, images only for reference.

IHLP1616ABER2R2M11

Name: IHLP1616ABER2R2M11
Brand: Vishay
SKU: 156062
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP1616ABER2R2M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 2.75A 83.5 MOHM
Datasheet	IHLP1616ABER2R2M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Molded
Inductance	2.2μH
Tolerance	±20%
Current Rating	2.75A
Current - Saturation	3A
DC Resistance (DCR)	83.5 mOhm Max
Frequency - Self Resonant	49MHz
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	017146-IHLP1616ABER2R2M11
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IHLP1616ABER2R2M11 CAD Model

Alternative Products

Description

The Vishay IHLP1616ABER2R2M11 is a surface mount inductor designed for use in a variety of electronic applications.

GPTDescription: It features a current rating of 2.75A and an inductance of 2.2μH, making it suitable for use in power circuits. The IHLP1616ABER2R2M11 is packaged in a molded package and is mounted via surface mount technology. This inductor has a tolerance of ±20% and a DC resistance (DCR) of 83.5 mOhm max. The IHLP1616ABER2R2M11 has a temperature range of -55°C to 125°C and is an active product with a medium popularity and a balance in supply and demand status.
