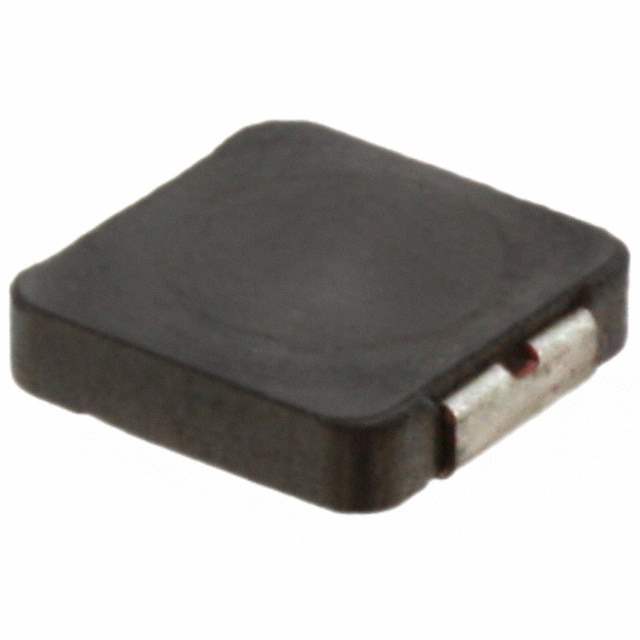

Same model may have multiple batches, images only for reference.

IHLP2020ABERR47M01

Name: IHLP2020ABERR47M01
Brand: Vishay
SKU: 156091
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP2020ABERR47M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 470NH 6.5A 19.2 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Molded
Inductance	470nH
Tolerance	±20%
Current Rating	6.5A
Current - Saturation	18A
DC Resistance (DCR)	19.2 mOhm Max
Frequency - Self Resonant	108MHz
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	129012-IHLP2020ABERR47M01
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	4k pcs
Ultra Librarian 3D Model	Ultra Librarian IHLP2020ABERR47M01 CAD Model

Alternative Products

Description

The Vishay IHLP2020ABERR47M01 is a molded inductor designed to offer a current rating of 6.5A, with an inductance of 470nH.

Current Rating: 6.5A
Inductance: 470nH
Height: 0.047 inches
Tolerance: ±20%
Current Saturation: 18A
Self-Resonant Frequency: 108MHz
DC Resistance (DCR): 19.2 mOhm Max
Operating Temperature: -55°C to 125°C
Package: Reel - TR
Quantity: 4k pcs
