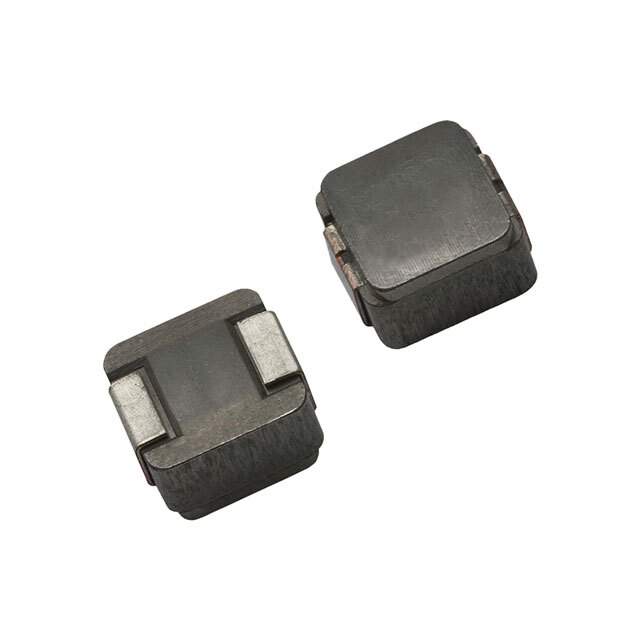

IHLP2020CZER100MA1

Name: IHLP2020CZER100MA1
Brand: Vishay
SKU: 1064784
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP2020CZER100MA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-2020CZ-A1 10 20% ER E3 / 10 µH Shielded Inductor 2.5 A 164mOhm Max Nonstandard
Datasheet	IHLP2020CZER100MA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-2020CZ-A1
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	2.5 A
Current - Saturation (Isat)	4A
Shielding	Shielded
DC Resistance (DCR)	164mOhm Max
Frequency - Self Resonant	16MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP2020CZER100MA1TR,541-IHLP2020CZER100MA1CT,541-IHLP2020CZER100MA1DKR
Standard Package	2,000
Win Source Part Number	1064784-IHLP2020CZER100MA1
Ultra Librarian 3D Model	Ultra Librarian IHLP2020CZER100MA1 CAD Model

Alternative Products

Description

The Vishay Dale IHLP-2020CZ-A1 is a fixed inductor that comes in a nonstandard package.

Inductance: 10μH
Tolerance: ±20%
Shielded: Yes
Current Rating: 2.5Amps
AEC-Q200: rated
DC Resistance Max: 164mOhm
Height: 0.118 inches
Dimension: 0.216 inches L x 0.204 inches W
Frequency Self-Resonant: 16MHz
Application: suitable for automotive applications
