Same model may have multiple batches, images only for reference.

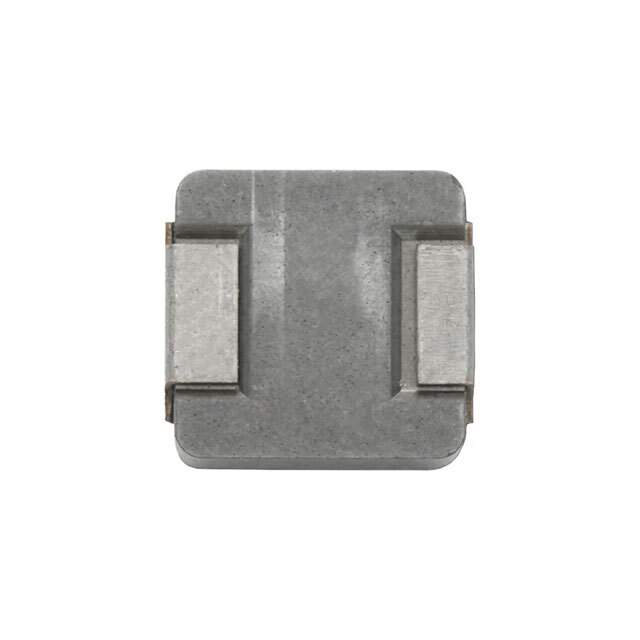

IHLP2525CZER1R5MA1 Real Image
Same model may have multiple batches, images only for reference.

IHLP2525CZER1R5MA1

Part No IHLP2525CZER1R5MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-2525CZ-A1 1.5 20% ER E3 / 1.5 µH Shielded Inductor 9 A 15mOhm Max Nonstandard
Datasheet
IHLP2525CZER1R5MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-2525CZ-A1
Package Tape & Reel
Material - Core Metal Composite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 18A
Shielding Shielded
DC Resistance (DCR) 15mOhm Max
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP2525CZER1R5MA1CT,541-IHLP2525CZER1R5MA1DKR,541-IHLP2525CZER1R5MA1TR
Standard Package 2,000
Win Source Part Number 975559-IHLP2525CZER1R5MA1
Ultra Librarian 3D Model Ultra Librarian IHLP2525CZER1R5MA1 CAD Model

Description

The Vishay IHLP2525CZER1R5MA1 is a fixed inductor with a 1.5μH inductance and a tolerance of ±20%.

  • Inductance: 1.5μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Height: 0.118" (3.00mm)
  • DC Resistance: 15mOhm Max
  • Current Rating: 9A
  • Package Type: Tape and reel
  • Mounting Type: SMD (SMT)
  • Material: Metal composite
  • AEC-Q200: Yes
  • Frequency Range: 40MHz
  • Operating Temperature Range: -55°C to 125°C
  • Dimensions: 0.270" L x 0.255" W (6.86mm x 6.47mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.50.8000
  • Manufacturer: Vishay Dale
