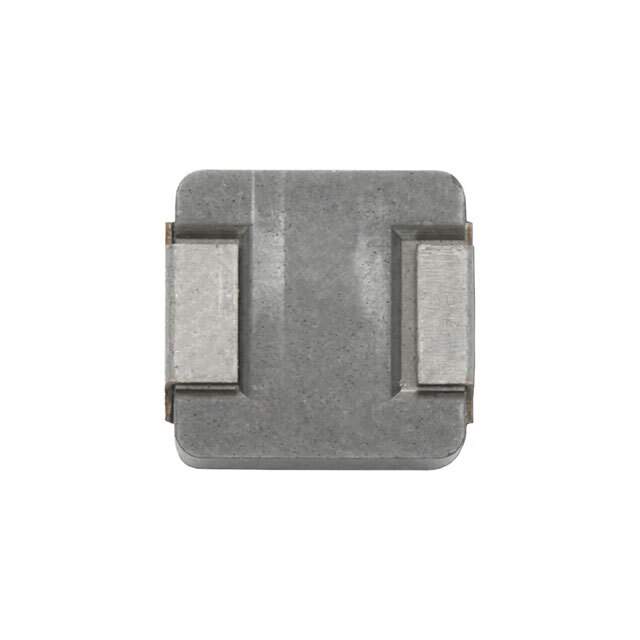

IHLP2525CZER2R2MA1

Name: IHLP2525CZER2R2MA1
Brand: Vishay
SKU: 984198
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP2525CZER2R2MA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-2525CZ-A1 2.2 20% ER E3 / 2.2 µH Shielded Inductor 8 A 20mOhm Max Nonstandard
Datasheet	IHLP2525CZER2R2MA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-2525CZ-A1
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	8 A
Current - Saturation (Isat)	14A
Shielding	Shielded
DC Resistance (DCR)	20mOhm Max
Frequency - Self Resonant	38MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP2525CZER2R2MA1CT,541-IHLP2525CZER2R2MA1TR,541-IHLP2525CZER2R2MA1DKR
Standard Package	2,000
Win Source Part Number	984198-IHLP2525CZER2R2MA1
Ultra Librarian 3D Model	Ultra Librarian IHLP2525CZER2R2MA1 CAD Model

Alternative Products

Description

The Vishay IHLP2525CZER2R2MA1 is a metal composite core inductor that is shielded and has a 2.2 µH inductance.

Inductance: 2.2 µH
Series: IHLP-2525CZ-A1
AEC-Q200 Rated: yes
Package: tape and reel
Mounting: SMD (SMT)
Tolerance: ±20%
DC Resistance (DCR): 20mOhm Max
Frequency - Self-Resonant: 38MHz
Dimension: 0.270" L x 0.255" W (6.86mm x 6.47mm)
Current Rating: 8A
Current Saturation (Isat): 14A
