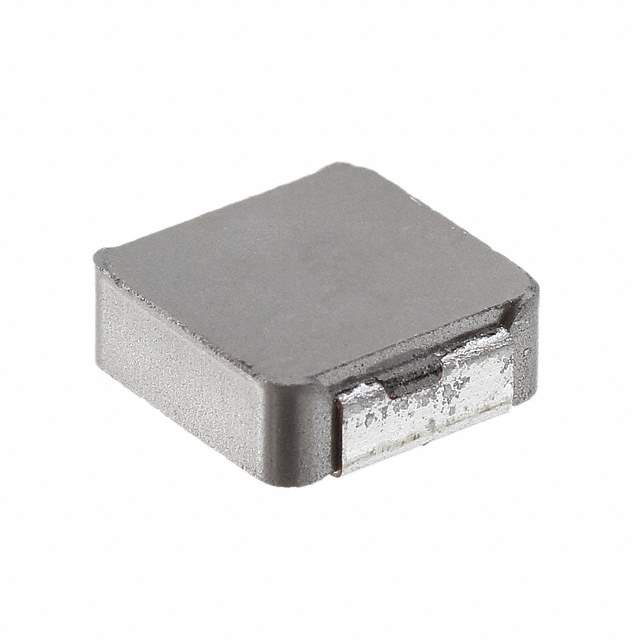

Same model may have multiple batches, images only for reference.

IHLP3232CZER1R0M01

Name: IHLP3232CZER1R0M01
Brand: Vishay
SKU: 1327477
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP3232CZER1R0M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 1UH 13.7A 8.35MOHM SMD / 1 µH Shielded Molded Inductor 13.7 A 8.35mOhm Max Nonstandard
Datasheet	IHLP3232CZER1R0M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Type	Molded
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	13.7 A
Current - Saturation (Isat)	29A
Shielding	Shielded
DC Resistance (DCR)	8.35mOhm Max
Frequency - Self Resonant	51MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	541-IHLP3232CZER1R0M01TR,541-IHLP3232CZER1R0M01DKR,IHLP3232CZER1R0M01-ND,541-IHLP3232CZER1R0M01CT
Standard Package	1,000
Win Source Part Number	1327477-IHLP3232CZER1R0M01
Ultra Librarian 3D Model	Ultra Librarian IHLP3232CZER1R0M01 CAD Model

Alternative Products

Description

The Vishay Dale IHLP3232CZER1R0M01 is a surface mount, molded inductor with a shielded design.

Size: 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height: 0.118" (3.00mm)
Inductance: 1 µH
Tolerance: ±20%
DC Resistance (DCR): 8.35mOhm Max
Current Rating: 13.7 A
Frequency Self-Resonant: 51MHz
Current Saturation: 29A
Operating Temperature: -55°C to 125°C
