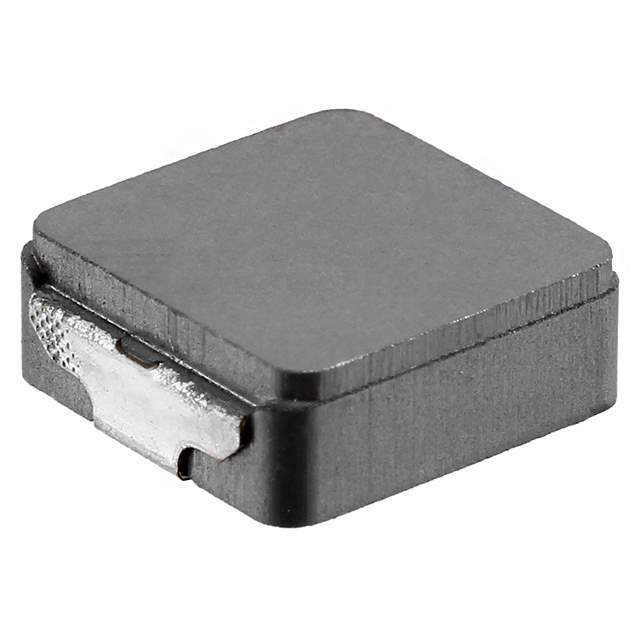

Same model may have multiple batches, images only for reference.

IHLP4040DZER330M51

Name: IHLP4040DZER330M51
Brand: Vishay
SKU: 1108964
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP4040DZER330M51
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 33UH 3.7A 117.7MOHM SM / 33 µH Shielded Molded Inductor 3.7 A 117.7mOhm Max Nonstandard
Datasheet	IHLP4040DZER330M51 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-4040DZ-51
Package	Tape & Reel
Type	Molded
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	3.7 A
Current - Saturation (Isat)	4.2A
Shielding	Shielded
DC Resistance (DCR)	117.7mOhm Max
Frequency - Self Resonant	5.79MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	4040
Dimension	0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	IHLP4040DZER330M51-ND,541-4354-6,541-4354-1,541-4354-2
Standard Package	500
Win Source Part Number	1108964-IHLP4040DZER330M51
Ultra Librarian 3D Model	Ultra Librarian IHLP4040DZER330M51 CAD Model

Alternative Products

Description

The IHLP4040DZER330M51 is a fixed inductor from the IHLP-4040DZ-51 series.

Type: This electronic component is molded and shielded.
Packaging: It has a tape and reel package.
Inductance: The inductance is 33 μH.
Tolerance: The tolerance is ±20%.
DC Resistance (DCR): The DC resistance (DCR) is 117.7mOhm Max.
Current Rating (Amps): The current rating (Amps) is 3.7A.
Package/Case: The package/case is nonstandard.
Supplier Device Package: The supplier device package is 4040.
Temperature Range: The temperature range for operating is -55°C to 125°C.
