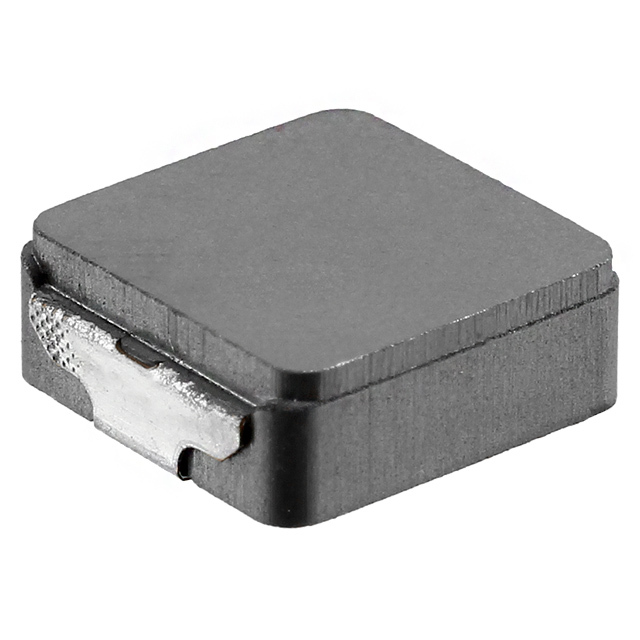

IHLP4040DZER4R7M5A

Part No IHLP4040DZER4R7M5A
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 4.7UH 9.8A 15.32 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Molded
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 9.8 A
Current - Saturation (Isat) 9.2A
Shielding Shielded
DC Resistance (DCR) 15.32mOhm Max
Frequency - Self Resonant 20.1MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Supplier Device Package 4040
Size / Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532413-IHLP4040DZER4R7M5A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER4R7M5A CAD Model

Description
